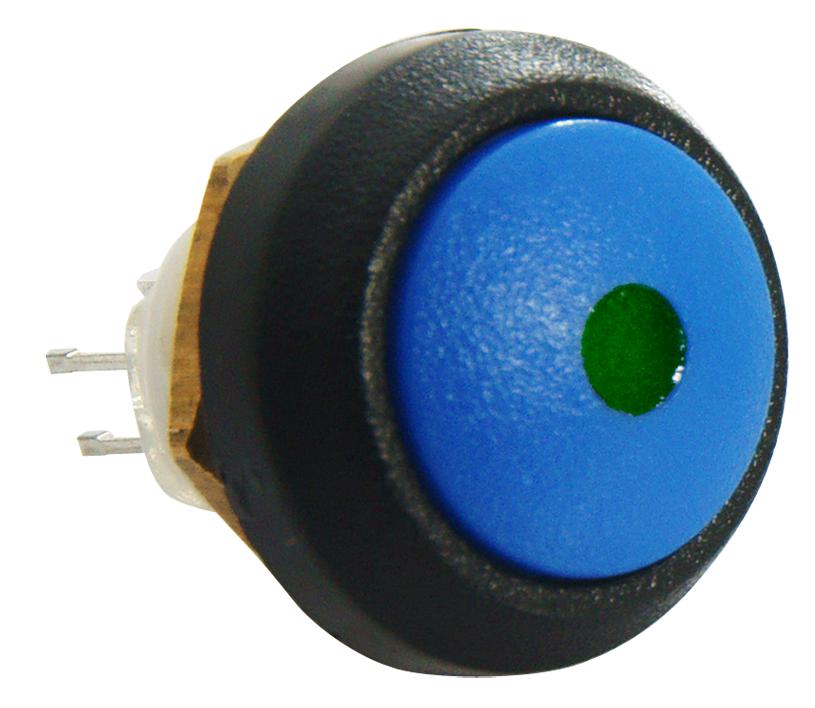

ITW Switches 481RBGBLB Miniature Sealed Pushbutton
The Series 48 12mm miniature sealed pushbutton switches offer rugged durability with various mounting styles, colors, and illumination options. Designed for industrial, medical, outdoor, and transportation applications, these switches feature momentary or maintained action, IP67 sealing, and gold or silver contacts. Available with solder, wire leads, or PC terminals, they support LED illumination with resistor protection. Flexible mounting options include bushing or snap-fit, ensuring reliable operation in harsh environments with operating temperatures from -40°C to +85°C. Designed for long life, up to 1 million cycles for resistive contact models.
ITW Switches 481RBGBLB Miniature Sealed Pushbutton Specifications:
- Actuator Ingress Protection: IP67
- Operating Temperature: -40°C to +85°C
- Contact Resistance: 50m OHMS
- Dielectric Strength: 1,000 VAC
- Insulation Resistance: 1 G OHM
- Current Rating: 10mA @ 12VDC for momentary, 20K cycles; 20mA @ 28VDC for maintained, 50K cycles
- Wire Leads: UL Style 1007, 26 AWG, Stranded
- Mounting Options: Bushing (0.5-3.0 mm panel thickness), Snap-fit (1.3-3.0 mm panel thickness)
- Button Travel: 2.3 mm, Operating Force: 3N (306 g)
- Contacts: Gold or Silver, Momentary or Maintained action
- Sealing Washer and Hex Nut included
- Thread: ISO Metric M12x1, with hex nut
- Standards: RoHS Compliant
Buy the Buy ITW Switches Series 48 Part Number 481RBGBLB Online
Order the ITW Switches Series 48 miniature sealed pushbutton switches online today and enjoy reliable performance in industrial, medical, outdoor, and transportation applications. These switches feature IP67 sealing, various mounting options, LED illumination with resistors, and durable contacts designed for up to 1 million cycles. Perfect for demanding environments, they combine rugged construction, easy installation, and long-lasting performance. Enhance your equipment with high-quality switches that support diverse voltage and contact configurations for versatile use.
Get ITW Switches Series 48 part 481RBGBLB today—built for precision, durability, and sealing in harsh environments.
Frequently Asked Questions
Where can I buy ITW Switches 481RBGBLB?
You can click on the BUY or RFQ button to purchase 481RBGBLB from an authorized ITW Switches distributor.
How do I troubleshoot issues or seek technical support for part 481RBGBLB?
You can download the 481RBGBLB datasheet or visit the ITW Switches website for support.
Who is the manufacturer of 481RBGBLB?
ITW Switches
