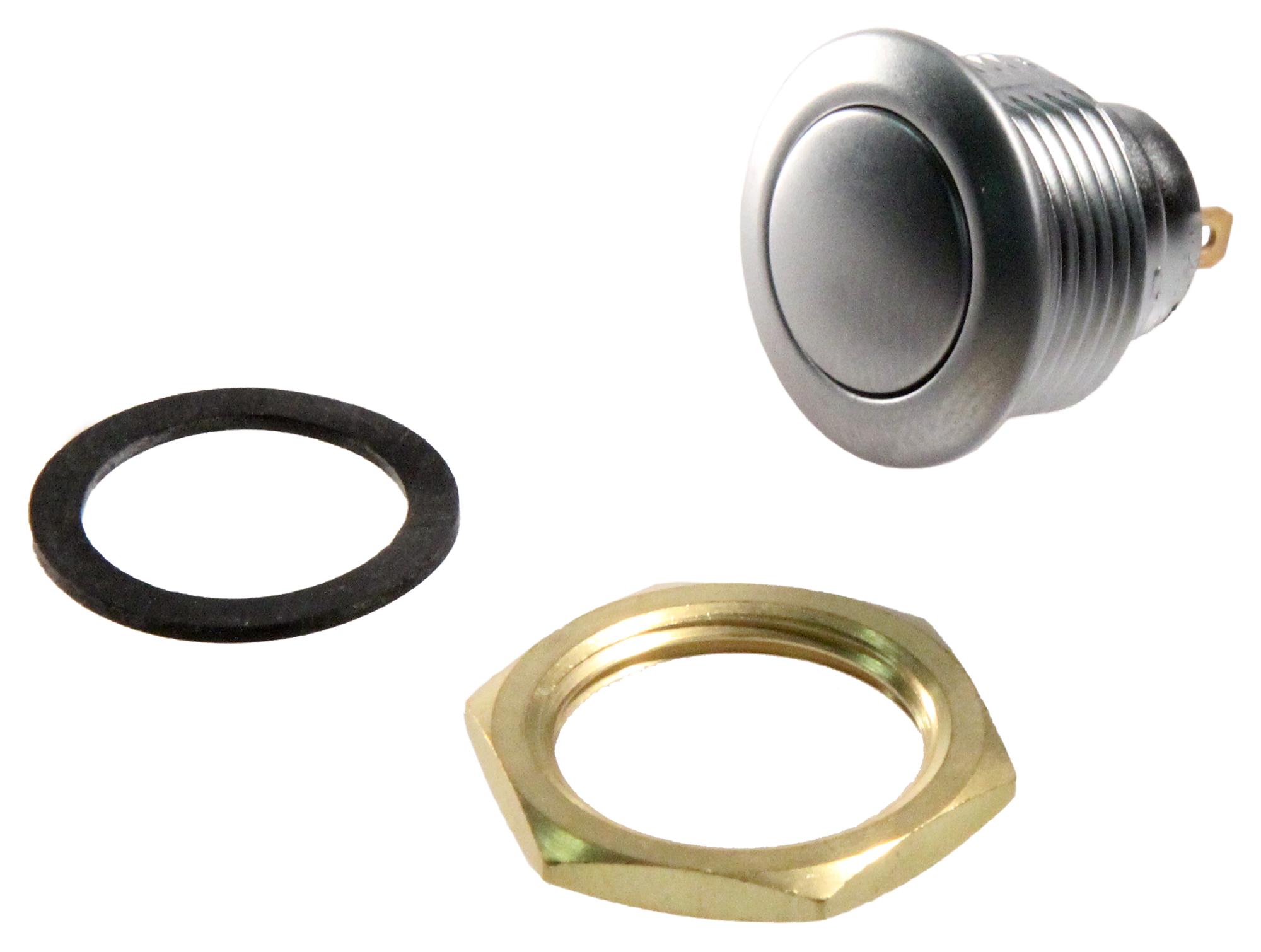

ITW Switches 57111 Vandal Resistant Pushbutton Switch
A rugged, vandal-resistant sealed pushbutton switch designed for outdoor and harsh environments, ensuring durability, impact resistance, and reliable operation. It features panel sealing to IP67, impact resistance from -40°C to +125°C, and is suitable for military, aerospace, security, medical, transportation, and industrial process control applications. Available in lighted and non-lighted versions with various LED colors, this switch offers 1,000,000 mechanical cycles, 500,000 electrical cycles, a travel of 2.3 mm, and a maximum contact resistance of 50 mΩ. It supports up to 400mA at 32 VAC resistive and is constructed with zinc alloy bodies, gold-plated brass terminals, and velour chrome-plated buttons. The switch is rated for switching power up to 16 VA AC and soldering at 608°F for 3 seconds.
ITW Switches 57111 Vandal Resistant Pushbutton Switch Specifications:
- Travel: 2.3 mm
- Life: 1,000,000 mechanical cycles, 500,000 electrical cycles
- Operating Force: 3N / 306 grams
- Contact Resistance: Max 50 mΩ
- Current Rating: 400mA at 32 VAC resistive
- Switching Power Max: 16 VA AC
- Panel Thickness Max: 3.0 mm
- Temperature Range: -40°C to +125°C
- Material: Velour chrome plated body, zinc alloy button, gold plated brass terminals
- Sealing: IP67
- LED Compatibility: Lighted versions support LED indicator with various colors
Buy the Buy Industrial Equipment Pushbutton Switches Part Number 57111 Online
Order the vandal-resistant sealed pushbutton switch online today to benefit from superior durability and impact resistance. Designed for harsh outdoor environments, it guarantees reliable operation, long cycle life, and optional LED illumination for enhanced visibility. Perfect for security, aerospace, military, medical, and industrial applications, this switch withstands extreme temperatures up to 125°C and offers easy installation with a max panel thickness of 3 mm. Improve your system's robustness by purchasing this high-quality switch directly from authorized distributors online.
Buy ITW Switches 57111 now and experience unmatched reliability, impact resistance, and long lifespan in demanding environments.
Frequently Asked Questions
Where can I buy ITW Switches 57111?
You can click on the BUY or RFQ button to purchase 57111 from an authorized ITW Switches distributor.
How do I troubleshoot issues or seek technical support for part 57111?
You can download the 57111 datasheet or visit the ITW Switches website for support.
Who is the manufacturer of 57111?
ITW Switches
