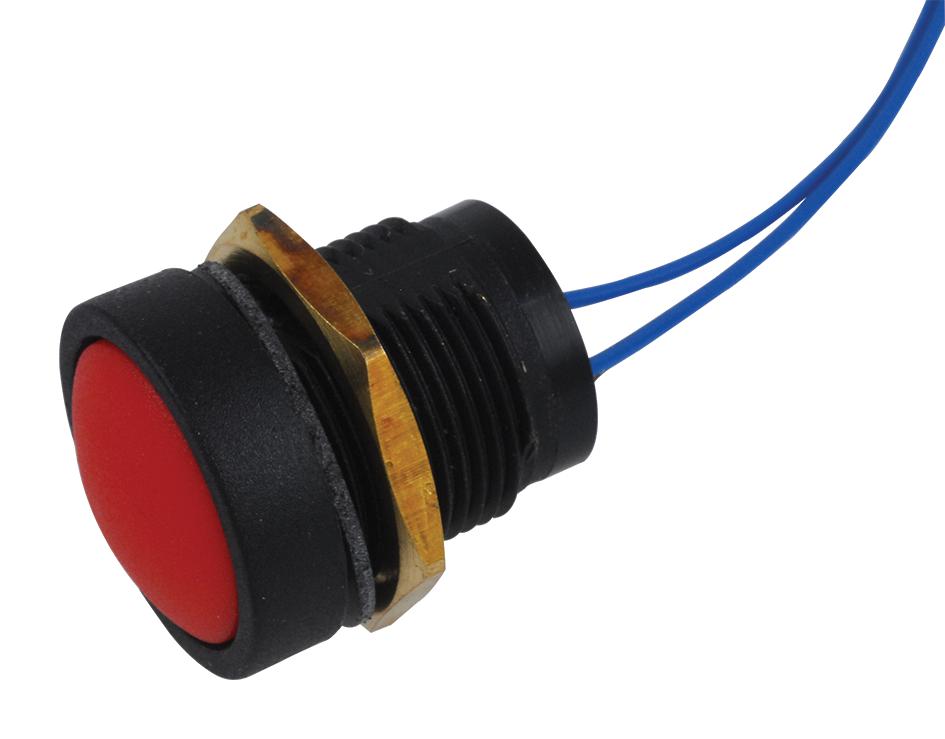

ITW Switches 4959112 industrial pushbutton switch
The 49-59 series switches from ITW are rugged momentary pushbutton switches designed for panel mounting with a 16mm cutout. Available in fully sealed IP67 versions with insulated 500mm leads or panel-sealed models terminated by a Series 16 microswitch, these switches feature SPDT-DB contacts for reliable DC load switching. They come in round, illuminated with LED status, or square bezel styles in six colors. Made from durable PBT thermoplastic, the switches support snap-in and screw mounting, operate at 3N force, and withstand temperature ranges up to 105°C, making them ideal for industrial, automation, and military environments.
ITW Switches 4959112 industrial pushbutton switch Specifications:
- Panel cutout: 16mm diameter
- Body material: PBT thermoplastic
- Button styles: round, square, illuminated
- Ingress protection: IP67
- Operating force: 3N
- Travel: 2.3mm
- Life: 1,000,000 cycles
- Max panel thickness: 8mm for flying lead, 1.5mm for microswitch
- Contacts: SPDT-DB, gold plated (microswitch version)
- Voltage ratings: 10A at 250V AC (microswitch), 400mA at 32V AC (flying leads)
- Temperature range: -55°C to +105°C (non-illuminated), -35°C to +85°C (illuminated)
- Dielectric strength: 1000V AC for 1 minute
- Insulation resistance: 1GΩ @ 500V DC
- Soldering temperature: 320°C for 3 seconds
- Terminations: screw terminals or snap-in
- Colors: Black, Red, Green, White, Yellow, Blue
- Flame retardant UL-rated materials
Buy the ITW Switches 4959112 – Reliable Pushbutton for Industrial Applications
Order the ITW Series 49-59 pushbutton switch online today and benefit from high-quality, sealed IP67 protection, multiple styles, LED indicators, and a robust construction. Designed for demanding environments, these switches offer long cycle life, reliable contact switching, and versatile mounting options. Perfect for instrumentation, communication, military, and transport applications, ensuring safety and performance in every operation. Secure your order now to enhance your industrial control panels with a trusted, durable switch that withstands harsh conditions and provides consistent performance.
Buy ITW Switches 4959112 now and experience unmatched reliability and durability for industrial control systems and automation needs.
Frequently Asked Questions
Where can I buy ITW Switches 4959112?
You can click on the BUY or RFQ button to purchase 4959112 from an authorized ITW Switches distributor.
How do I troubleshoot issues or seek technical support for part 4959112?
You can download the 4959112 datasheet or visit the ITW Switches website for support.
Who is the manufacturer of 4959112?
ITW Switches
