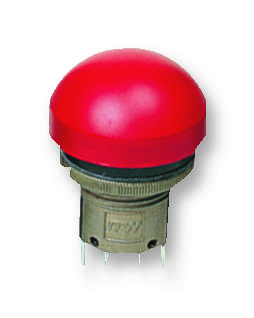

ITW Switches 769450439088R Vandal Resistant Pushbutton Switch
The ITW SWITCHES Series 76-94 is a robust, vandal-resistant pushbutton switch engineered for demanding applications. Constructed with a non-sparking zinc alloy and a polycarbonate lens, this switch offers exceptional durability and resistance to environmental factors. Its IP67 panel sealing and 20J impact rating ensure reliable performance in harsh conditions, making it ideal for military, industrial, petrochemical, and material handling environments. Available in various configurations, including pushbutton, rotary, and panel lamp styles, with options for custom colors, PCB terminals, gold contacts, and two-pole variants, the 76-94 series provides a versatile solution for a wide range of applications.
ITW Switches 769450439088R Vandal Resistant Pushbutton Switch Specifications:
- Travel: 2.5mm (PB)
- Life (nom): 2,000,000 cycles (PB), 50,000 cycles (R), 100,000 cycles (Maintained Push-button)
- Operating force: 7N (PB)
- Contact bounce: 5ms (PB, R)
- Panel thickness (max): 6mm (PB, R, L)
- Dielectric strength: 1000V RMS (PB, R)
- Insulation resistance: 1GΩ (PB, R)
- Contact resistance (initial): 25mΩ (PB, R)
- Current rating (max): 10A resistive 250V a.c. (PB, R)
- Illumination type: T1[3] /[4] Wedge base bulb (L)
- Ingress protection: IP67 (Panel Sealed) (PB, R, L)
- Impact rating: 20J (PB, R, L)
- Shock: 50g (PB, R, L)
- Operating temperature range: -40°C to +125°C (PB, R, L)
- Body material: Zinc alloy (PB, R, L)
- Actuator material: Zinc alloy (PB, R)
- Lens material: Polycarbonate (L)
- Contact material: Fine silver (PB, R)
Buy the 76-9450/439088R ITW SWITCHES Vandal Resistant Pushbutton Switch | myMectronic
Securely purchase the ITW SWITCHES 76-9450/439088R vandal resistant pushbutton switch online today.
Buy Now
Frequently Asked Questions
Where can I buy ITW Switches 769450439088R?
You can click on the BUY or RFQ button to purchase 769450439088R from an authorized ITW Switches distributor.
How do I troubleshoot issues or seek technical support for part 769450439088R?
You can download the 769450439088R datasheet or visit the ITW Switches website for support.
Who is the manufacturer of 769450439088R?
ITW Switches
