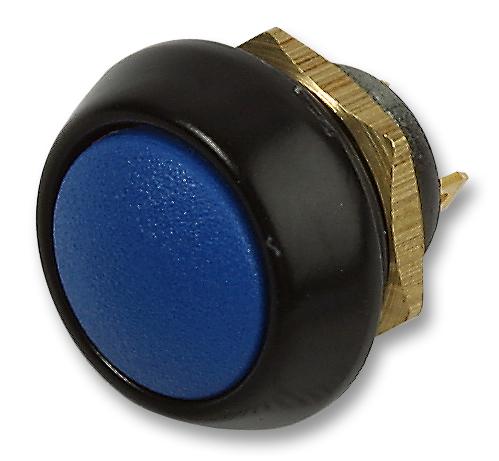

ITW Switches 59116 Miniature Sealed Pushbutton
The 59 series switches from ITW are miniature, momentary action sealed pushbutton switches designed for durability and versatile applications. Available with either square or round bezels, they can feature LED status illumination or be non-illuminated, with various color options. Constructed from non-spark zinc alloy or durable molded PBT, these switches offer robustness suitable for harsh environments. They are panel sealed to IP67, operate across a wide temperature range up to 125°C, and include an overboot for icing protection. With a current rating of 400mA at 32VAC, an operating force of 3N, and a panel cutout of 13.6mm diameter, they are ideal for industrial, power management, automation, and process control applications. Each switch is supplied with a locknut for secure mounting.
ITW Switches 59116 Miniature Sealed Pushbutton Specifications:
- Panel mounting: 13.6mm diameter panel cutout
- Ingress protection: IP67
- Material: Zinc alloy or PBT body, PBT button
- Operation force: 3N
- Travel: 2.3mm
- Electrical ratings: 400mA at 32V AC resistive, 100mA at 50V DC resistive
- Switching power: Up to 16VA AC
- Contact resistance: 50mΩ
- Dielectric strength: 1000V AC
- Insulation resistance: 1GΩ
- Life expectancy: 1,000,000 cycles
- Operating temperature: -55°C to +125°C (zinc body), -40°C to +105°C (PBT body), -35°C to +85°C (illuminated)
- Vibration: DEF STD 07-55
- Shock resistance: 100g (non-illuminated), 40g (illuminated)
- Contacts: Gold plated nickel
- Soldering: Max 320°C for 3 seconds
- Color options: Black, Red, Green, White, Yellow, Blue, Orange
Buy the ITW Series 59 Pushbutton: 59116
Purchase the ITW Series 59 miniature sealed pushbutton switch online today to benefit from durable, impact-resistant design, IP67 sealing, and versatile LED and color options. Perfect for industrial automation, control panels, and challenging environments, this switch combines reliability with easy installation. With a lifespan of 1,000,000 cycles and operating across a wide temperature range, it guarantees long-term performance. Secure your automation and instrumentation needs now with quick online ordering, ensuring fast delivery of a dependable, high-quality pushbutton switch for your project.
Get ITW Series 59 Pushbutton switch today—built for durable performance in harsh environments and versatile industrial applications.
Frequently Asked Questions
Where can I buy ITW Switches 59116?
You can click on the BUY or RFQ button to purchase 59116 from an authorized ITW Switches distributor.
How do I troubleshoot issues or seek technical support for part 59116?
You can download the 59116 datasheet or visit the ITW Switches website for support.
Who is the manufacturer of 59116?
ITW Switches
