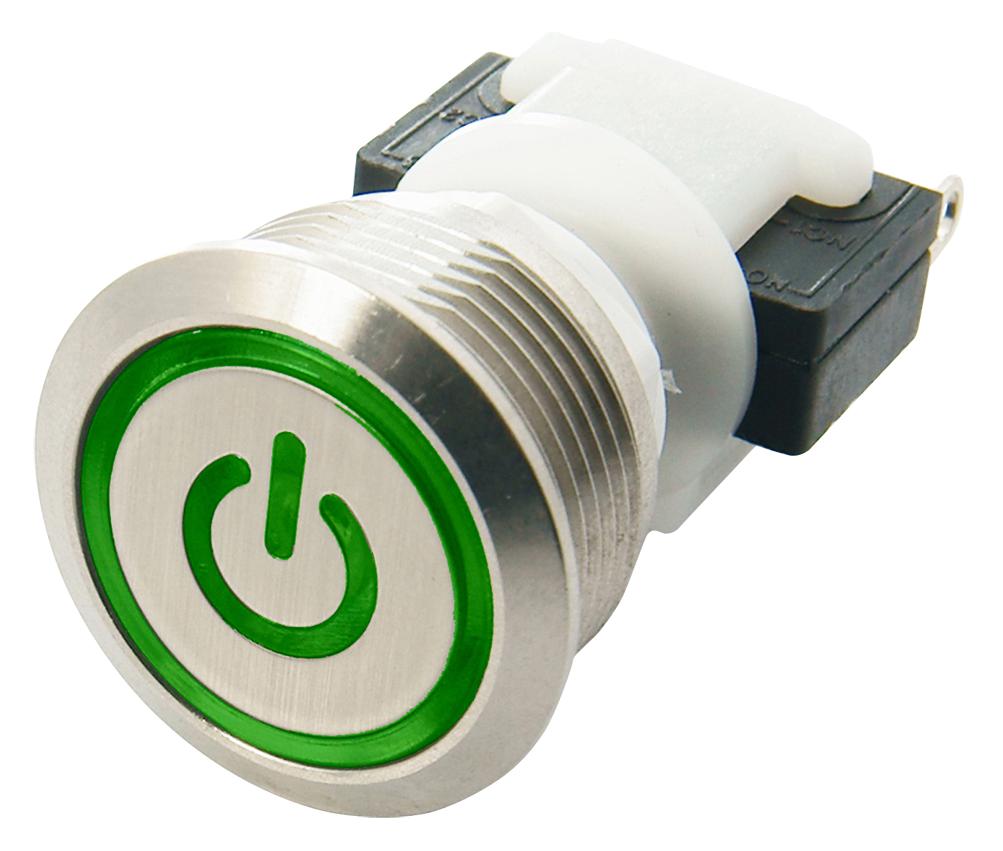

ITW-Switches H48M113G4044 Pushbutton Switch
The 19mm panel-sealed pushbutton switch series H48M is designed for industrial, transportation, security, and medical applications. This rugged electromechanical switch is available in stainless steel or zinc alloy housings with momentary or maintained action options. Featuring IP67 sealing and various LED illumination colors, it provides reliable operation in harsh environments. Suitable for outdoor controls, security equipment, and machinery, it supports a maximum current of 10A at 125/250 VAC and 10A at 28 VDC. Easy panel mounting with front sealing ensures durability and ease of installation.
ITW-Switches H48M113G4044 Pushbutton Switch Specifications:
- Panel thickness: 0.020 to 0.177 inches (0.5 to 4.5 mm)
- Sealing: IP67 rated with mounting sealing gasket
- Actuator travel: 0.09 inches (2.3 mm)
- Operating force: 5.2N (520 grams)
- Contact resistance: 50 mΩ max
- Dielectric strength: 1,000 VAC
- Insulation resistance: Not specified
- Maximum current: 10A at 125/250 VAC and 10A at 28 VDC
- LED forward voltage: Red, Amber, Yellow: 2 V; Green, Blue, White: 3.4 V
- LED operating temperature: -13°F to +185°F
- Temperature index: -40°C to +85°C (momentary), -40°C to +65°C (maintained)
- Switch type: SPDT, Form Z
- Material: Stainless steel or zinc alloy housing
- Mounting: Front panel with sealing ring and hex nut
Buy the ITW-SWITCHES H48M113G4044 – Reliable Sealed Pushbutton Switch for Industrial Use
Purchase the durable brand pushbutton switch online today. Designed with IP67 sealing, LED illumination options, and support for 10A current, this switch is perfect for demanding industrial, security, and medical applications. Its rugged construction ensures long-lasting operation, easy panel mounting, and reliable instant actuation. Whether for outdoor controls or machinery, buy now to enhance your equipment with a high-quality, sealed, and versatile pushbutton switch designed for professionals seeking durability and performance.
Get Brand H48M113G4044 today—built for durability, sealing, and reliable performance in rugged industrial environments.
Frequently Asked Questions
Where can I buy ITW-Switches H48M113G4044?
You can click on the BUY or RFQ button to purchase H48M113G4044 from an authorized ITW-Switches distributor.
How do I troubleshoot issues or seek technical support for part H48M113G4044?
You can download the H48M113G4044 datasheet or visit the ITW-Switches website for support.
Who is the manufacturer of H48M113G4044?
ITW-Switches
