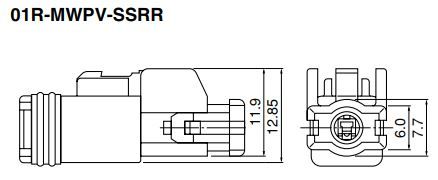

JST 01RMWPVSSRR Waterproof Connector Housing
This waterproof wire-to-wire receptacle housing from the MWP series with a 7.0 mm pitch offers reliable electrical connections for various wire sizes, including 26 to 18 AWG. Constructed from UL94V-0 PBT material, it features a white finish that enhances visibility and corrosion resistance. Rated for 300V and 7A, it is ideal for applications requiring water ingress protection up to IEC IPX4 grade. It incorporates secure locking mechanisms, including a slider lock, providing durability and interference-proof connections in challenging environments, complying with RoHS standards for safety and environmental compliance.
JST 01RMWPVSSRR Waterproof Connector Housing Specifications:
- Pitch: 7.0 mm
- Voltage Rating: 300V AC/DC
- Current Rating: 7A at 1 circuit, varies with wire size and circuit count
- Wire Size Range: AWG #26 to #18 (0.13 to 0.75 mm²)
- Material: PBT, UL94V-0, white
- Temperature Range: -40°C to +105°C
- Waterproof Grade: IPX4 (JIS C 0920/IEC 60529)
- Contact Resistance: Initial/7mΩ max; After environmental testing/10mΩ max
- Insulation Resistance: ≥ 1,000MΩ
- Withstanding Voltage: 1,500V AC for 1 minute
- Applicable Wires: AWG #26 to #18, insulation O.D. 2.1 to 2.5mm
- Standards: RoHS compliant, Recognized E60389, Certified LR20812
Buy the Buy JST Waterproof Wire-to-Wire Connector Part Number 01RMWPVSSRR Online
Enhance your project with the JST waterproof wire-to-wire connector housing, designed for durability and secure connections in wet environments. With a 7.0mm pitch, rated for 300V and 7A, it supports wire sizes from AWG 26 to 18. Its IPX4 waterproof grade ensures optimal protection against water ingress, making it perfect for outdoor or harsh industrial use. The housing features built-in locking mechanisms, including a slider lock, for added reliability and interference-free connections. Easy to install, RoHS compliant, and suitable for various electrical applications, it’s your reliable choice for tough environments.
Order your JST Series01RMWPVSSRR waterproof wire-to-wire connector today and ensure reliable, water-resistant electrical connections for rugged applications.
Frequently Asked Questions
Where can I buy JST 01RMWPVSSRR?
You can click on the BUY or RFQ button to purchase 01RMWPVSSRR from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 01RMWPVSSRR?
You can download the 01RMWPVSSRR datasheet or visit the JST website for support.
Who is the manufacturer of 01RMWPVSSRR?
JST
