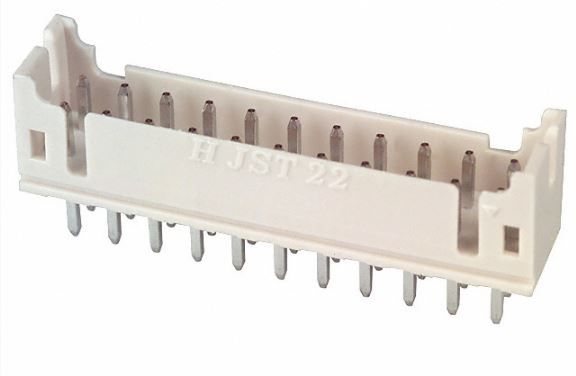

JST B22BPHDSSLFSN Male Pin Header Connector
This male pin header connector from the PHD Series features 22 positions and is designed for reliable through-hole mounting and soldering. Its tin-plated contacts ensure durability, and the secure detent lock provides a stable connection. Suitable for voltage applications up to 250V and current ratings of 3A, it supports wire sizes from 28 to 22 AWG. With a natural finish, this connector is suitable for various circuit assemblies requiring high-density, low-profile connections. Its robust construction makes it ideal for industrial electronics and control systems.
JST B22BPHDSSLFSN Male Pin Header Connector Specifications:
- Current rating: 3A AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact Material: Tin-plated brass
- Insulation Resistance: 1,000MΩ min.
- Contact Resistance: 10mΩ max. initial, 20mΩ max. after environmental testing
- Applicable wire: AWG #28 to #22
- Applicable PCB thickness: 1.6mm
- Material: Phosphor bronze with tin plating
- RoHS compliant
- Connector type: Male pin header, through-hole mounting
- Number of positions: 22
- Finish: Natural, tin-plated
Buy the Buy JST Male Pin Header Part Number B22BPHDSSLFSN Online
Order the JST B22BPHDSSLFSN male pin header connector online today and ensure a secure, durable connection in your electronic applications. Designed for 22 positions with tin-plated contacts, it supports wire sizes from 28 to 22 AWG, making it suitable for high-density assembly. Its robust construction and 250V voltage rating make it ideal for industrial, control, and automation systems. Purchase now to benefit from fast delivery, competitive pricing, and engineering-grade reliability in your next project.
Buy JST B22BPHDSSLFSN now and experience reliable high-density connections for your electronic projects.
Frequently Asked Questions
Where can I buy JST B22BPHDSSLFSN?
You can click on the BUY or RFQ button to purchase B22BPHDSSLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B22BPHDSSLFSN?
You can download the B22BPHDSSLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B22BPHDSSLFSN?
JST
