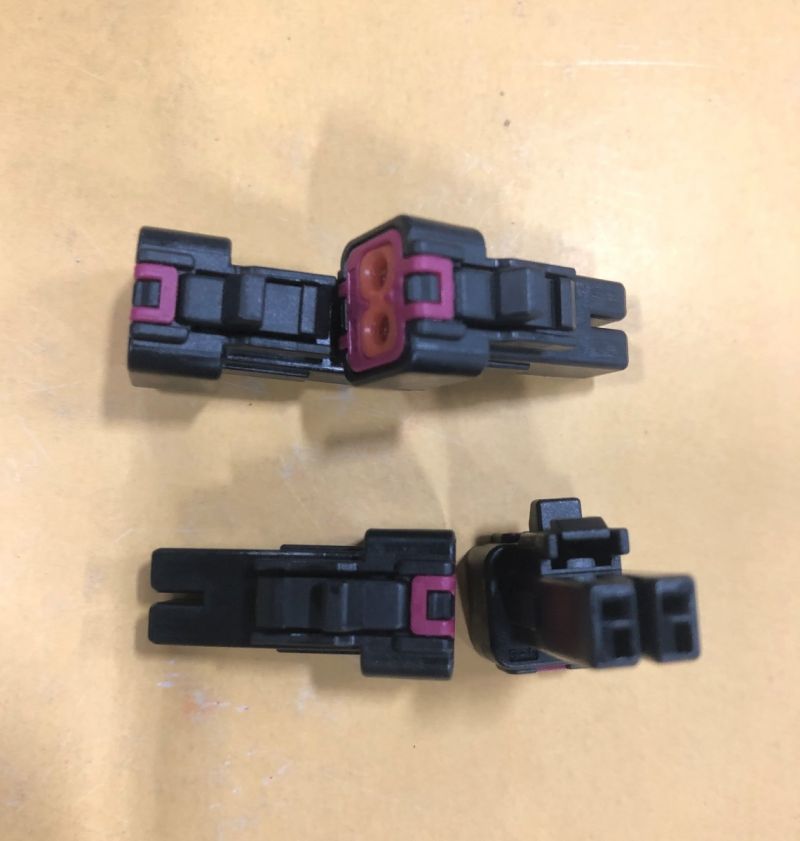

JST 02RJWPSVKNSXB Waterproof Connector
The JWPS Series 2-position waterproof connector offers reliable wire-to-wire connections with a compact 4.0mm pitch, rated for 4A AC/DC at 300V. Constructed with durable copper alloy, tin-plated for corrosion resistance, it features a waterproof design meeting IPX7 standards, perfect for applications requiring sealing against water ingress. The connector supports wire sizes from AWG 22 to 18, with a temperature range of -55°C to +85°C, ensuring high performance in harsh environments. Its robust construction includes a PBT housing, seal ring, and mis-mating prevention key, making it a versatile choice for outdoor and industrial use.
JST 02RJWPSVKNSXB Waterproof Connector Specifications:
- Current rating: 4 A AC, DC (AWG #22)
- Voltage rating: 300 V AC, DC
- Temperature range: -55°C to +85°C
- Applicable wire: AWG #22 to #18
- Insulation O.D.: 1.75 to 2.5 mm
- Waterproof grade: IPX7 according to JIS C 0920 and IEC 60529
- Housing material: Glass-filled PBT, UL94V-0
- Contact material: Copper alloy, tin-plated
- Seal material: Silicone rubber
- Contact size: 4.0mm
- Applicable wire: Conductor size AWG 22 to 18
- Environmental ratings: RoHS compliant
- Operating temperature: -55°C to +85°C
- Voltage: 300V
- Current: 4A (AWG 22), 5A (AWG 20), 6A (AWG 18)
Buy the JST Series Waterproof Connector: 02RJWPSVKNSXB
Purchase your waterproof connector from JST online today to experience reliable, IPX7-rated performance for outdoor and industrial applications. With durable construction, high voltage and current ratings, and compatibility with flexible wire sizes, this connector guarantees secure, water-tight connections. Its robust PBT housing, silicone rubber seals, and mis-mating prevention key make it ideal for harsh environments. Enjoy quick ordering, fast delivery, and quality assurance with JST's trusted technical support, ensuring your project’s success with dependable waterproof connectivity solutions.
Order your JST Series Waterproof Connector today and ensure secure, water-resistant connections in challenging environments.
Frequently Asked Questions
Where can I buy JST 02RJWPSVKNSXB?
You can click on the BUY or RFQ button to purchase 02RJWPSVKNSXB from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 02RJWPSVKNSXB?
You can download the 02RJWPSVKNSXB datasheet or visit the JST website for support.
Who is the manufacturer of 02RJWPSVKNSXB?
JST
