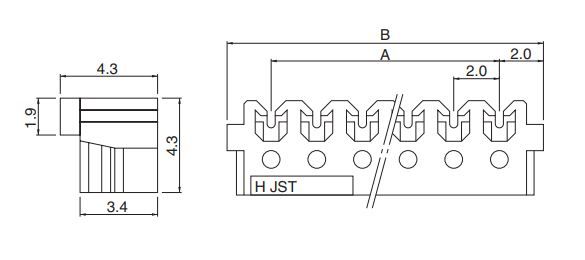

JST 04DRNE8EP Distal Receptacle Connector
This is a compact 4-position receptacle connector from the DR Connector Series, featuring a 2.0 mm pitch with a 28 AWG wire rating. It supports 100V AC/DC voltage, has tin-plated contacts, and is housed in a blue color for easy identification. Designed with twin U-slot insulation displacement sections and a folded beam contact construction, it ensures reliable and vibration-resistant connections. The maximum current is 1.0A, and it is suitable for miniature electronic equipment such as VCRs, cameras, and car stereo systems, operating within -25°C to +85°C temperature range.
JST 04DRNE8EP Distal Receptacle Connector Specifications:
- Pitch: 2.0mm
- Rated Voltage: 100V AC/DC
- Current Rating: 1.0A at AWG #26
- Wire Range: UL1571, 1061, AWG #28, #26, tin-coated
- Insulation Resistance: 1,000MΩ minimum
- Contact Resistance: Initial/10mΩ max, after environmental testing/20mΩ
- Operating Temperature: -25°C to +85°C
- Material: Contact made of phosphor bronze, tin-plated; Housing is PA 66, UL94V-0
- Applicable PC Board Thickness: 1.2 to 1.6 mm
- Withstanding Voltage: 800V AC/minute
- RoHS compliant
- Color: Blue for easy identification
- Connectors are disconnectable insulation displacement type, suitable for miniature electronic devices
Buy the Buy JST DR Connector Series Part Number 04DRNE8EP Online
Purchase the JST DR Connector series 4-position receptacle connector online to ensure high-quality, reliable electrical connections for compact electronic systems. Featuring a 2.0 mm pitch, rated for 100V AC/DC, and supporting 28 AWG wire, this tin-plated, blue connector is ideal for VCRs, cameras, and car stereo systems. Its twin U-slot insulation displacement design and folded beam contacts provide excellent vibration resistance and long-term durability. Shop now to enhance your electronic projects with trustworthy, RoHS-compliant connectors.
Buy JST DR Connector Series 04DRNE8EP now and experience reliable insulation displacement connections perfect for miniature electronic devices.
Frequently Asked Questions
Where can I buy JST 04DRNE8EP?
You can click on the BUY or RFQ button to purchase 04DRNE8EP from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 04DRNE8EP?
You can download the 04DRNE8EP datasheet or visit the JST website for support.
Who is the manufacturer of 04DRNE8EP?
JST
