JST S3PVHLFSN Signal Connector

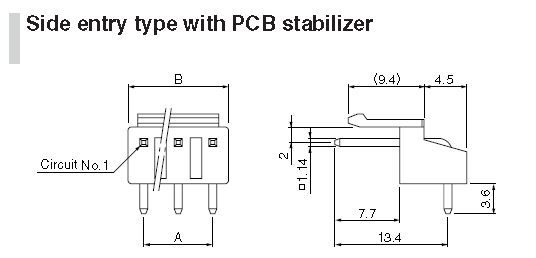

This high-quality 3-position side-entry connector header from the VH Series features a 3.96mm pitch, shrouded design, and secure locking ramp. Suitable for through-hole soldering, it offers a reliable connection for electronic assemblies. Rated for 250V, the connector is made of UL94V-0 natural (white) UL-rated materials, with copper alloy contacts tin-plated for durability. Its compact size and sturdy construction make it ideal for signal, power, and output circuits in consumer, industrial, and telecommunications equipment. The header ensures safe, stable, and efficient connections in various electronic applications.
JST S3PVHLFSN Signal Connector Specifications:
- Current rating: 10A AC, DC (AWG #16)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/ 10mΩ max, after environmental testing/ 20mΩ max
- Insulation resistance: 1,000MΩ minimum
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #22 to #16
- Applicable PCB thickness: 1.6mm
- Material: Phosphor bronze, Tin-plated
- RoHS compliant
- Connector Color: Natural (white)
Buy the Buy JST VH Series Connector Part Number S3PVHLFSN Online
Purchase the JST VH Series signal connector header with 3.96mm pitch online today. Featuring a durable, UL-rated material and a secure locking ramp, it provides stable electrical connections for power, signal, and output circuits. Designed for through-hole soldering and rated for 250V, this connector ensures safety and reliability in various electronic devices. With a natural color and rugged construction, it is ideal for consumer electronics and industrial applications, delivering long-lasting performance and compatibility with a wide range of wires.
Get JST VH Series Connector S3PVHLFSN today—designed for reliable, high-current applications with secure locking features.
Frequently Asked Questions
Where can I buy JST S3PVHLFSN?
You can click on the BUY or RFQ button to purchase S3PVHLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part S3PVHLFSN?
You can download the S3PVHLFSN datasheet or visit the JST website for support.
Who is the manufacturer of S3PVHLFSN?
JST
