JST 04FFSSPTFLFSN Surface Mount Hybrid Connector
This 4-position surface-mount connector from the FFS series is designed for reliable electrical connections in high-density packaging. With a 1.25mm pitch and a height of only 2.8mm, it features double-leaf phosphor bronze contacts for high contact pressure and redundancy, ensuring secure, corrosion-resistant connections. It supports currents up to 0.5A and voltages up to 50V, suitable for FFC applications. The connector is tin-plated for improved conductivity, mounted easily via snap-in action, supplied in embossed tape for automated assembly, and includes reinforcing solder tabs for durability.
JST 04FFSSPTFLFSN Surface Mount Hybrid Connector Specifications:
- Current rating: 0.5A AC, DC
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/20mΩ max; after testing/30mΩ max
- Insulation resistance: 800MΩ min
- Withstanding voltage: 500V AC/minute
- Applicable FFC: Conductor pitch/1.25mm, width/0.8mm, thickness/0.34±0.05mm
- Material: Contact made of phosphor bronze, copper-undercoated, tin-plated; Housing of PPS, UL94V-0
- Solder tab: Brass, copper-undercoated, tin-plated

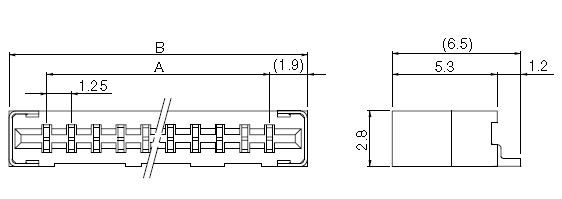

- Dimensions: Variety from 3.75mm to 31.25mm length, mounting height 2.8mm
- Reinforcing solder tabs included
- RoHS compliant
Buy the Buy JST FFS Connector Part Number 04FFSSPTFLFSN Online
Purchase the JST FFS connector part number 04FFSSPTFLFSN online today. This high-quality connector features a 1.25mm pitch, 2.8mm height, and is suitable for FFC applications up to 50V. Its tin-plated contacts ensure excellent electrical conductivity and corrosion resistance, while the snap-in design guarantees quick installation. Supplied in embossed tape for automation and reinforced with solder tabs for durability, it offers reliable, secure connections in compact high-density electronic assemblies. Perfect for engineers and technicians seeking dependable, easy-to-mount connectors.
Get JST FFS connector 04FFSSPTFLFSN today—designed for reliable high-density connections with easy snap-in and corrosion-resistant tin-plated contacts.
Frequently Asked Questions
Where can I buy JST 04FFSSPTFLFSN?
You can click on the BUY or RFQ button to purchase 04FFSSPTFLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 04FFSSPTFLFSN?
You can download the 04FFSSPTFLFSN datasheet or visit the JST website for support.
Who is the manufacturer of 04FFSSPTFLFSN?
JST
