JST 04RZWPVWKNN Waterproof wire-to-wire connector
This is a 4-position waterproof connector receptacle assembly from the ZWP series. It features a 1.5mm pitch, operates at 50V, and is rated for use with 28-24 AWG wires. The connector is tin-plated and designed to meet Grade 7 standards, ensuring durability and reliable electrical connection in wet or harsh environments. It is suitable for applications requiring a compact, waterproof wire-to-wire connector with inner lock structure, complying with RoHS2 standards and IEC IEC 60529 ingress protection.
JST 04RZWPVWKNN Waterproof wire-to-wire connector Specifications:
- Pitch: 1.5 mm
- Voltage rating: 50 V AC/DC
- Current rating: 2 A AC/DC (AWG #24)
- Wire range: AWG #28 to #24, insulation OD 0.9-1.2 mm
- Contact material: Copper alloy, tin-plated
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Operating temperature: -25°C to +85°C
- Ingress protection: Grade 7 (IPX7 of IEC 60529)
- Material housing: PBT, UL94V-0, black
- Seal components: Silicone rubber, brown
- RoHS2 compliant
- Applicable wire: Insulated, stranded copper conductors

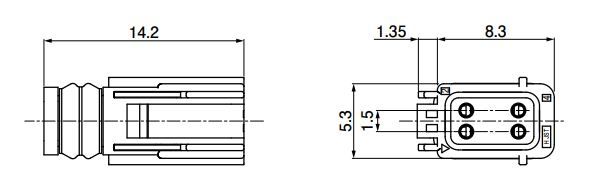

- Dimensions: Not specified in detail but designed for compact assembly.
- Conductor size: AWG #28 to #24
Buy the Buy JST ZWP Connector Part Number 04RZWPVWKNN Online
Purchase the waterproof wire-to-wire connector from JST's ZWP series online today to ensure secure, corrosion-resistant connections in your industrial, automation, or electronic projects. Designed with IPX7 ingress protection, a 1.5mm pitch, and rated for 50V and 2A, this connector provides durable and reliable performance even in harsh environments. Its compact design makes it ideal for tight spaces, while premium materials like tin-plated copper and PBT housing guarantee longevity and safety. Shop now for quick delivery and quality assurance.
Buy JST ZWP Connector Part Number 04RZWPVWKNN now and experience unmatched reliability and waterproof performance in your electrical applications.
Frequently Asked Questions
Where can I buy JST 04RZWPVWKNN?
You can click on the BUY or RFQ button to purchase 04RZWPVWKNN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 04RZWPVWKNN?
You can download the 04RZWPVWKNN datasheet or visit the JST website for support.
Who is the manufacturer of 04RZWPVWKNN?
JST
