JST 05NRD4KP Insulation Displacement Circuit Connector
This JST receptacle connector features a 5-position configuration designed for 24 AWG wires, with a durable black housing suitable for reliable electrical connections across various electronic systems. It supports daisy chaining, offering simplified wiring in complex electronic equipment. The IDC insulation displacement technology ensures secure, strain-relieved connections, capable of withstanding environmental stresses such as vibration and bending. Compliant with RoHS standards, it includes interchangeable headers compatible with XH, NR, and JQ connectors. Rated for 2A at 250V, it operates within -25°C to +85°C temperature range for versatile use.
JST 05NRD4KP Insulation Displacement Circuit Connector Specifications:
- Current rating: 2A AC, DC (AWG #24)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Applicable wire: UL1007, AWG #28, #26, #24, tin-coated, 7 strands
- Insulation resistance: 1,000M min
- Withstanding voltage: 1,500V AC/minute
- Applicable PC board thickness: 1.6mm
- Material: Contact made of phosphor bronze, tin-plated; Housing made of PA 66, UL V-0
- Dimensions vary with model from 2.5mm to 22.5mm pitch, with up to 16 circuits
- RoHS compliant, standards recognized: UL Recognized, LR20812

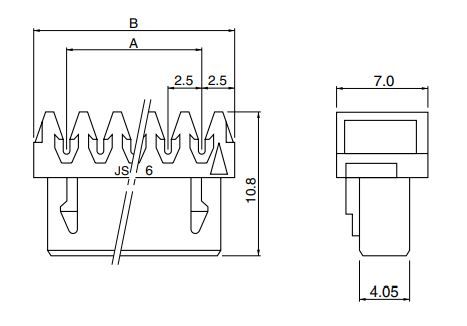

Buy the JST Series 5-Pin Connector: 05NRD4KP
Order the JST 05NRD4KP connector online today and enjoy a dependable, efficient solution for your electronic wiring needs. This 5-position IDC connector features a robust black housing, supports 24 AWG wires, and offers compatibility with XH, NR, and JQ headers, simplifying assembly. Rated for 2A at 250V, it ensures secure, strain-relieved connections suitable for diverse environments. Ideal for circuit board applications, its compliance with RoHS standards guarantees safety and environmental responsibility. Purchase now to streamline your electronic system design effortlessly.
Get JST 05NRD4KP today—built for secure, reliable connections and versatile electronic wiring solutions.
Frequently Asked Questions
Where can I buy JST 05NRD4KP?
You can click on the BUY or RFQ button to purchase 05NRD4KP from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 05NRD4KP?
You can download the 05NRD4KP datasheet or visit the JST website for support.
Who is the manufacturer of 05NRD4KP?
JST
