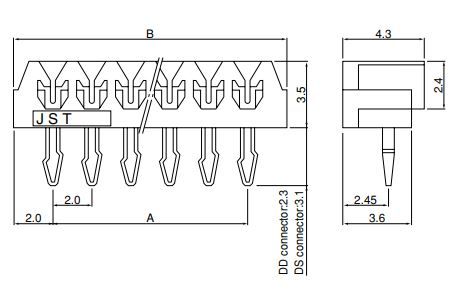

JST 06DS8ELFSN Connector Header
This 6-position DS series connector header with a 2.0mm pitch is rated for 100V and supports 28 AWG wires. Made with phosphor bronze contacts and UL94V-0 rated housing, it ensures reliable electrical connections and durability. The connector features a blue color code, suitable for high-density electronic wiring, and complies with RoHS standards. Ideal for compact electronic assemblies, it offers strain relief, a secure lock-in feature, and is designed for easy soldering onto printed circuit boards with a variety of circuit options from 2 to 15 contacts. Its specifications make it perfect for low-current, high-density wiring in industry applications.
JST 06DS8ELFSN Connector Header Specifications:
- Current rating: 0.7A AC/DC
- Voltage rating: 100V AC/DC
- Temperature range: -25°C to +85°C
- Insulation resistance: ≥ 1,000MΩ
- Withstanding voltage: 800V AC/minute
- Applicable wire: UL1571, 1061, 28 AWG, tin-coated, 7 strands
- Insulation outer diameter: 0.9mm
- Applicable PC board thickness: 0.8mm, 1.0mm for DD; 1.2mm, 1.6mm for DS
- Housing material: PA 66, UL94V-0, glass-filled for 12-15 circuits
- Material of contacts: Phosphor bronze, copper undercoated and tin-plated
- RoHS compliant, UL Listed, recognized E60389
- Connector color: Blue
- Pitch: 2.0mm
Buy the JST 06DS8ELFSN – Reliable Connectors for Electronic Assembly
Purchase your JST 06DS8ELFSN connector header online today and enjoy fast delivery and reliable quality. Designed for high-density electronic wiring, with a 2.0mm pitch and rated for 100V, it supports 28 AWG wires for versatile applications. Made with durable phosphor bronze contacts and UL94V-0 rated housing, this connector ensures reliable electrical connections and easy assembly. Its blue color coding helps with wiring organization. Ideal for compact electronic devices, it features strain relief, secure lock-in, and compliance with RoHS standards, making it a trusted choice for industrial and consumer electronics.
Order your JST series 06DS8ELFSN connector today and ensure secure, high-quality connections for your electronic projects.
Frequently Asked Questions
Where can I buy JST 06DS8ELFSN?
You can click on the BUY or RFQ button to purchase 06DS8ELFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 06DS8ELFSN?
You can download the 06DS8ELFSN datasheet or visit the JST website for support.
Who is the manufacturer of 06DS8ELFSN?
JST
