JST SHLDP20VSB Connector Housing
This high-quality 20-position connector housing from the SHLD series features a 1.0mm pitch and is suited for electronics, LCDs, and small devices. Constructed from UL94V-0 PBT in natural white, it offers excellent durability, RoHS compliance, and secure locking mechanisms to prevent deformation. Rated for 50V AC/DC and 1.0A current with a temperature range of -25°C to +85°C, it ensures reliable electrical performance. Compatible with 28 AWG wires, this connector is ideal for compact, space-efficient electronic applications requiring secure, stable connections.
JST SHLDP20VSB Connector Housing Specifications:
- Number of positions: 20
- Pitch: 1.0mm
- Current rating: 1.0A AC, DC (AWG #28)
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Material: PBT, UL94V-0, natural (white)
- RoHS compliant
- Housing color: White
- Wire size compatibility: 28 AWG
- Locking system: Secure lock type
- Contact resistance: Initial value/30mΩ max. after environmental testing/40mΩ max.
- Insulation resistance: 100MΩ min.
- Withstanding voltage: 500V AC/minute

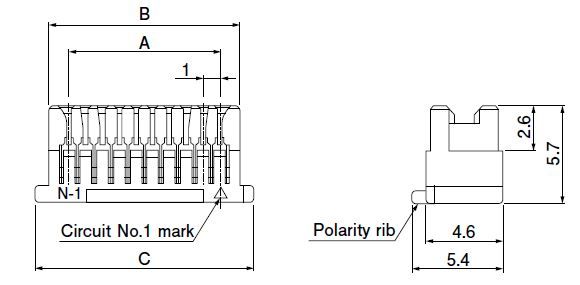

- Dimensions: Refer to detailed datasheets
- Standards: Recognized E60389
Buy the JST SHLDP20V– Reliable Connector Housing for Small Electronics
Enhance your electronic projects with this reliable 20-position connector housing featuring a 1.0mm pitch and rated for 50V. Made from flame-retardant UL94V-0 PBT in natural white, it ensures durability, RoHS compliance, and secure locking to prevent contact deformation. Its design supports 28 AWG wires, making it ideal for LCDs, small electronics, and space-sensitive applications. With excellent electrical performance, withstands up to 50V and 1.0A, and operates between -25°C to +85°C, ensuring stable, long-term operation in demanding environments.
Buy JST SHLDP20V connector housing now and experience unmatched reliability and performance for compact electronic connections.
Frequently Asked Questions
Where can I buy JST SHLDP20VSB?
You can click on the BUY or RFQ button to purchase SHLDP20VSB from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SHLDP20VSB?
You can download the SHLDP20VSB datasheet or visit the JST website for support.
Who is the manufacturer of SHLDP20VSB?
JST
