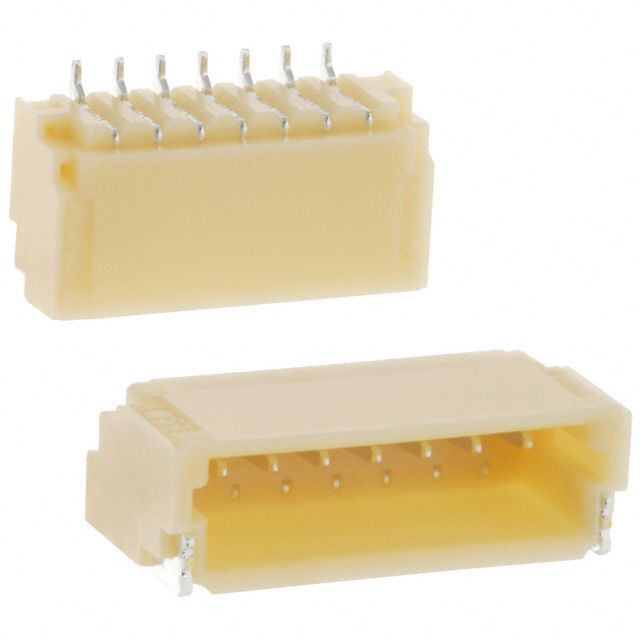

JST SM07BSRSSTBLFSN connector header
This surface mount side-entry connector header from the SR series features 7 positions with a 1.00mm pitch, ideal for compact electronic applications. Constructed from copper alloy with tin plating, it supports applications up to 50V and has a natural finish. The connector complies with RoHS standards, offering excellent environmental safety and durability. Its design ensures reliable electrical connections with low contact resistance (initial/20mΩ max., after testing/40mΩ max.) and a high insulation resistance of 100M min. Suitable for PCB mounting, this connector provides versatility in automation and electronic device manufacturing.
JST SM07BSRSSTBLFSN connector header Specifications:
- Current rating: 1.0A AC, DC (AWG #28)
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/20mΩ max, after environmental testing/40mΩ max
- Insulation resistance: 100MΩ min
- Withstanding voltage: 500V AC/minute
- Applicable wire: Conductor size/AWG #32 to #28, Insulation O.D./0.4 to 0.8mm
- Material: Copper alloy, tin-plated (reflow treatment)
- Housing: PA, UL94V-0, natural
- RoHS compliant
- Dimensions: Length varies by model, typical ins. thickness 0.030 inches, diameter 0.070 inches
- Suitable for surface mount PCB assembly
Buy the JST BMO7B-SRSS-TB – Reliable Connectors for Industrial Applications
Purchase the JST BMO7B-SRSS-TB surface mount connector today—engineered for reliable performance with 7 positions and 1.00mm pitch. Its copper alloy construction with tin plating ensures excellent electrical contact and environment durability. Perfect for applications up to 50V, it complies with RoHS standards and features natural finish. Its compact design and PCB mounting versatility make it ideal for automation, electronic devices, and manufacturing equipment. Buy online now for high-quality, long-lasting connectivity solutions.
Get JST BMO7B-SRSS-TB today—built for precision with a compact design suitable for industrial electronic assembly.
Frequently Asked Questions
Where can I buy JST SM07BSRSSTBLFSN?
You can click on the BUY or RFQ button to purchase SM07BSRSSTBLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SM07BSRSSTBLFSN?
You can download the SM07BSRSSTBLFSN datasheet or visit the JST website for support.
Who is the manufacturer of SM07BSRSSTBLFSN?
JST
