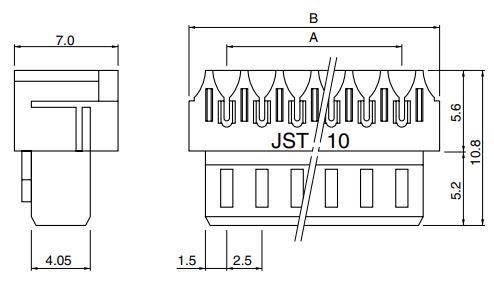

JST 08NRD4KP 4-Position Receptacle Connector
This 4-position receptacle connector from the NRD Connector Series features a 2.5mm pitch, rated for 250V and 2A current, compatible with 24 AWG wire. Made with tin-plated contacts and housed in durable black PA 66 material, it offers high reliability, insulation displacement technology, and strain relief support. Suitable for PCB applications, it ensures secure, vibration-resistant connections, with a temperature range of -25°C to +85°C. Its interconnectivity with XH, NRD, and JQ series enhances versatility for electronic circuit designs.
JST 08NRD4KP 4-Position Receptacle Connector Specifications:
- Pitch: 2.5mm
- Current rating: 2A AC, DC for AWG #24
- Voltage rating: 250V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/10mΩ max, post-environmental testing/20mΩ
- Insulation resistance: 1,000MΩ min
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: UL1007, AWG #28, #26, #24, tin-coated, 7 strands
- Insulation O.D.: 1.1 to 1.5mm
- Housing: PA 66, ULS4V-0, black color
- Conductor: Phosphor bronze, nickel-undercoated, tin-plated
- Applicable PCB thickness: 1.6mm
- RoHS compliant
Buy the JST Series NRD 4-Position Receptacle Connector: 08NRD4KP
Discover the high-quality JST Series NRD 4-Position Receptacle Connector, featuring a 2.5mm pitch, rated for 250V and 2A, compatible with 24 AWG wire. Crafted from tin-plated contact material and housed in black durable plastic, it provides excellent electrical performance and vibration resistance. Designed for PCB and electronic applications, its insulation displacement technology offers quick, secure connections. Interchangeable with similar series, this connector delivers outstanding reliability, safety, and ease of installation for professional and DIY projects. Purchase online now for fast, dependable delivery.
Order your JST Series NRD 4-Position Receptacle Connector today and ensure stable, reliable electronic connections for your PCB projects.
