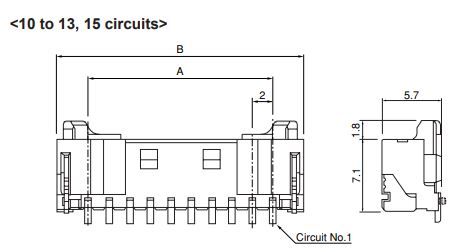

JST SM10BPASSTBTLFSN Surface Mount Header Connector
This is a 10-position surface-mount header connector from the PA series. It features a 2.00mm pitch, suitable for 26-22 AWG wires, with a locking ramp mechanism. The connector is designed for right-angle installation, operates at 250V, and arrives in a natural finish. Made from UL94V-0 rated materials, it offers reliable contact resistance and insulation resistance suitable for tight electronic assemblies. Compatible with a variety of PCB thicknesses and compliant with RoHS standards, this connector is ideal for space-efficient, high-reliability applications in industrial and consumer electronics.
JST SM10BPASSTBTLFSN Surface Mount Header Connector Specifications:
- Number of positions: 10
- Pitch: 2.00mm
- Applicable wire: 26-22 AWG
- Operating Voltage: 250V AC/DC
- Material: UL94V-0 rated PA 66 housing
- Contact Resistance: Initial/ 10mΩ max, After testing/20mΩ max
- Insulation Resistance: 1,000MΩ min
- Operating Temperature Range: -25°C to +85°C
- Mounting Type: Surface-mount with right-angle design
- RoHS Compliant
- Current Rating: 3A AC/DC
Buy the Buy JST PA Series Surface Mount Connector Part Number SM10BPASSTBTLFSN Online
Purchase the high-quality JST PA series surface-mount header connector with a 2.00mm pitch. Designed for space-efficient, reliable connections, it features a locking ramp, operates at 250V, and is RoHS compliant. Suitable for PCB thicknesses up to 1.6mm, ensuring excellent contact stability for various applications. Ideal for industrial electronics, consumer devices, and high-density circuitry, this connector guarantees durability and ease of installation. Order online today and ensure your project benefits from trusted quality and performance.
Buy JST PA Series SM10BPASSTBTLFSN connector now and experience unmatched reliability and high-performance connection for your electronic assemblies.
Frequently Asked Questions
Where can I buy JST SM10BPASSTBTLFSN?
You can click on the BUY or RFQ button to purchase SM10BPASSTBTLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SM10BPASSTBTLFSN?
You can download the SM10BPASSTBTLFSN datasheet or visit the JST website for support.
Who is the manufacturer of SM10BPASSTBTLFSN?
JST
