JST 12DA6SLFSN Board-in Connector
The 12DA-6S(LF)(SN) is a compact, low-profile board-in connector used for electronic wiring in small devices like VCRs, cameras, and radios. It features a twin U-slot insulation displacement section, making PCB mounting easy and reliable. Suitable for wires AWG #28 and #26, it supports 1.0A current and 100V voltage ratings, with a temperature range of -25°C to +85°C. The connector's materials include phosphor bronze contacts with tin plating and UL94V-0 rated PA 66 housing, ensuring durability, RoHS compliance, and easy assembly in space-constrained spaces.
JST 12DA6SLFSN Board-in Connector Specifications:
- Current rating: 1.0A AC, DC (AWG #26)
- Voltage rating: 100V AC, DC
- Temperature range: -25°C to +85°C
- Insulation resistance: ≥ 1,000MΩ
- Withstanding voltage: 800V AC/minute
- Applicable wire: UL1571, 1061; AWG #28, #26
- Conductor: 7 strands, tin-coated
- Insulation OD: 0.9 to 1.0 mm
- Applicable PCB thickness: 1.2, 1.6 mm
- Contact material: Phosphor bronze with tin plating
- Housing material: PA 66, UL94V-0

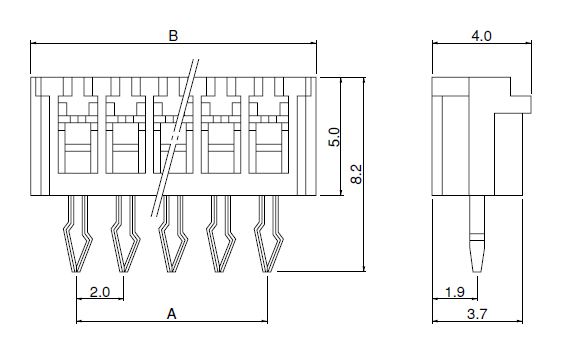

Buy the JST Series DA: 12DA-6S Wire-to-Board IDC Connector
Order the JST 12DA-6S wire-to-board IDC connector online today. Perfect for compact electronic devices like VCRs, cameras, and radios, this connector offers reliable insulation displacement, easy assembly on printed circuit boards, and a durable housing. Supporting wires AWG #28 and #26, it handles 1.0A current and up to 100V. Its robust materials, RoHS compliance, and space-saving design make it ideal for space-constrained electronics, ensuring a secure and long-lasting connection for your projects.
Get JST 12DA-6S board-in connector today—designed for reliable electronic connections with easy PCB mounting and space-saving features.
Frequently Asked Questions
Where can I buy JST 12DA6SLFSN?
You can click on the BUY or RFQ button to purchase 12DA6SLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 12DA6SLFSN?
You can download the 12DA6SLFSN datasheet or visit the JST website for support.
Who is the manufacturer of 12DA6SLFSN?
JST
