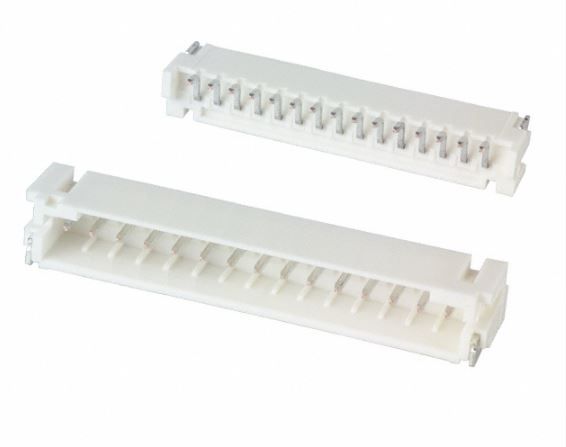

JST S15BPHSM4TBLFSN Surface Mount Header
A 15-position side-entry surface-mount header connector from the PH Series, with a 2.00mm pitch, in a natural finish. Suitable for modular and compact electronic assemblies, it features robust contact reliability, RoHS compliance, and a low-profile design of 7.95mm height after mounting. Made from copper alloy with tin-plated reflow treatment, it ensures durability and electrical stability for high-density PCB connections. The connector supports wire sizes from AWG 24 to 32 and PCB thicknesses of 0.8 to 1.6mm, making it ideal for space-constrained electronic applications.
JST S15BPHSM4TBLFSN Surface Mount Header Specifications:
- Pitch: 2.00mm
- Position Count: 15
- Material: Copper alloy, tin-plated (reflow treatment)
- Finish: Tin-plated
- Applicable wire range: AWG 24 to 32
- PCB thickness: 0.8 to 1.6mm
- Height after mounting: approx. 7.95mm
- RoHS compliant
- Designed for surface-mount applications
- Designed for high-density PCB connections
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/ 10mΩ max, after environmental tests/ 20mΩ max
- Insulation resistance: ≥ 1000MΩ
- Withstanding voltage: 800V AC
Buy the Buy JST Connectors Part Number S15BPHSM4TBLFSN Online
Discover the convenience of purchasing the high-quality JST surface-mount header connector S15BPHSM4TBLFSN online. With a 2.00mm pitch, excellent contact reliability, RoHS compliance, and durable tin-plated copper alloy construction, it is perfect for high-density electronic assemblies. Its compact size of approximately 7.95mm height makes it ideal for space-constrained applications. Available for fast delivery, this connector ensures easy installation on printed circuit boards, offering reliable electrical connections for a wide range of electronic devices.
Buy JST S15BPHSM4TBLFSN now and experience unmatched reliability and performance in compact PCB connection solutions.
