JST 26FLTSM2TBLFSN FPC Connector
The FLT Series 26FLTSM2TBLFSN FPC connector offers a compact, reliable solution for fine-pitch connections in electronic devices. Featuring a 0.5mm pitch, it is rated for 50V and 0.5A current, with tin-plated contacts for enhanced electrical performance. The connector's heat-resistant design ensures surface mounting suitability, with staggered tails and embossed tape for automatic assembly. Its specifications include a temperature range of -25°C to +85°C, contact resistance up to 50mΩ, and insulation resistance of at least 500MΩ, meeting RoHS compliance and industry standards.
JST 26FLTSM2TBLFSN FPC Connector Specifications:
- Current rating: 0.5A AC, DC
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Max 50mΩ initially, Max 20mΩ after environmental testing
- Insulation resistance: Minimum 500MΩ
- Withstanding voltage: 200V AC/minute
- Applicable FPC: pitch 0.56mm, width 0.35mm, thickness 0.3+0.05mm
- Contact material: Phosphor bronze, tin-plated
- Housing material: PA 6T, ULS4V-0
- RoHS compliant

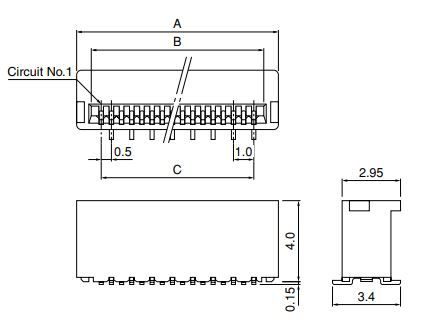

- Dimensions varies per model from 49mm to 219mm in length
Buy the JST Series FLT FPC Connector: 26FLTSM2TBLFSN
Discover the high-quality JST FLT Series FPC connector, designed with a 0.5mm pitch for precise and dependable connections in electronic devices. This connector features a compact design with staggered tails and embossed tape for seamless automation. Rated for 50V and 0.5A, it offers excellent electrical stability with tin-plated contacts, and withstands temperatures from -25°C to +85°C. Easy to mount and RoHS compliant, it’s ideal for surface-mount applications requiring fine-pitch connections in consumer electronics and industrial equipment.
Buy JST FLT FPC connector 26FLTSM2TBLFSN now and experience reliable fine-pitch connections with automated mounting suitability.
Frequently Asked Questions
Where can I buy JST 26FLTSM2TBLFSN?
You can click on the BUY or RFQ button to purchase 26FLTSM2TBLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 26FLTSM2TBLFSN?
You can download the 26FLTSM2TBLFSN datasheet or visit the JST website for support.
Who is the manufacturer of 26FLTSM2TBLFSN?
JST
