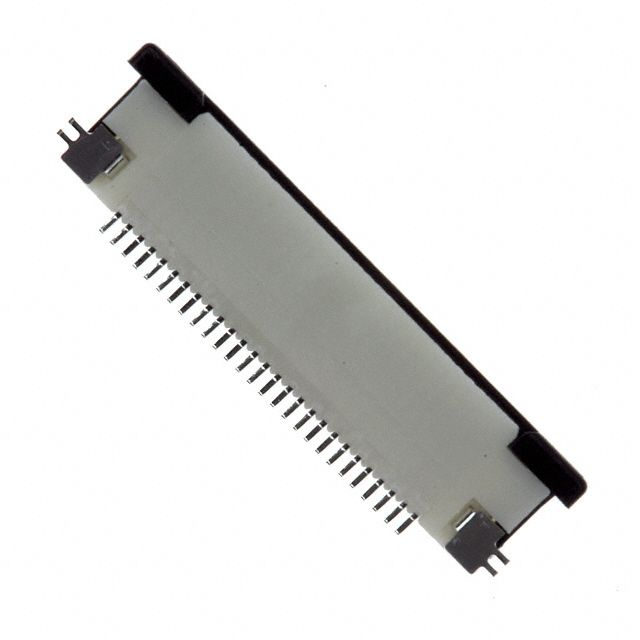

JST 27FLZRSM2TBLFSN FFC/FPC Connector
This surface mount FFC/FPC connector from the FLZ series features 27 positions with a 0.5mm pitch, designed for right-angle mounting and offering zero insertion force. Rated for 50V and 0.5A, it has a natural finish suitable for electronic device connections requiring secure, high-reliability flexible flat cable interfaces. Its compact height of 2.0mm allows installation in tight spaces, making it ideal for compact electronic assemblies. This high-precision connector complies with RoHS, provides excellent insulation resistance, and ensures stable contact performance under electrical stress and environmental conditions.
JST 27FLZRSM2TBLFSN FFC/FPC Connector Specifications:
- Current rating: 0.5A AC, DC
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/40mΩ max, after testing/60mΩ max
- Insulation resistance: 800MΩ minimum
- Withstanding voltage: 200V AC for 1 minute
- Applicable FFC and FPC: Conductor pitch 0.5mm, width 0.35mm, thickness 0.3±0.03mm
- Material: Contact Phosphor bronze, tin-plated; Housing PA 6T UL94V-0
- RoHS compliance: Yes
- Rated for automatic placement with embossed tape
Buy the JST Series FLZ 0.5mm Pitch FFC FPC Connector: 27FLZRSM2TBLFSN
Purchase the JST FLZ series FFC FPC connector with 27 positions and 0.5mm pitch online today. Designed for surface mounting with a natural finish, it offers high reliability, zero insertion force, and rated for 50V, making it ideal for tight spaces in electronic assemblies. Its durable construction ensures consistent contact resistance and excellent insulation, suitable for various applications including consumer electronics, communication devices, and industrial equipment. Order now for fast delivery and secure connectivity in your electronic projects.
Get JST FLZ 27FLZRSM2TBLFSN today—built for precision, reliability, and compact electronic applications with zero insertion force and high-current performance.
Frequently Asked Questions
Where can I buy JST 27FLZRSM2TBLFSN?
You can click on the BUY or RFQ button to purchase 27FLZRSM2TBLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 27FLZRSM2TBLFSN?
You can download the 27FLZRSM2TBLFSN datasheet or visit the JST website for support.
Who is the manufacturer of 27FLZRSM2TBLFSN?
JST
