JST B10BPHKLFSN Header Connector
This top-entry header connector from the PH series offers 10 positions with a 2.00 mm pitch, suitable for through-hole mounting with press-fit or soldering options. Constructed with a brass solder tab and copper alloy post, it features a natural ivory color, RoHS compliance, and a reliable tin-plated reflow finish. Designed for high-density PCB connections, the connector supports a maximum current of 2A, with a voltage rating of 100V AC/DC. Its robust construction ensures durability in various electronic applications, making it ideal for compact, reliable circuit assemblies.
JST B10BPHKLFSN Header Connector Specifications:
- Number of Circuits: 10
- Pitch: 2.00 mm
- Color: Natural (Ivory)
- Material: Post - Copper alloy, copper-undercoated, tin-plated; Solder tab - Brass, copper-undercoated, tin-plated
- Current rating: 2A AC/DC
- Voltage rating: 100V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/10mΩ, After testing/20mΩ
- Insulation resistance: 1,000 MΩ minimum
- Withstanding voltage: 800V AC
- Applicable wire: AWG #32 to #24
- Board Thickness Limit: 0.8 to 1.6mm
- RoHS compliant

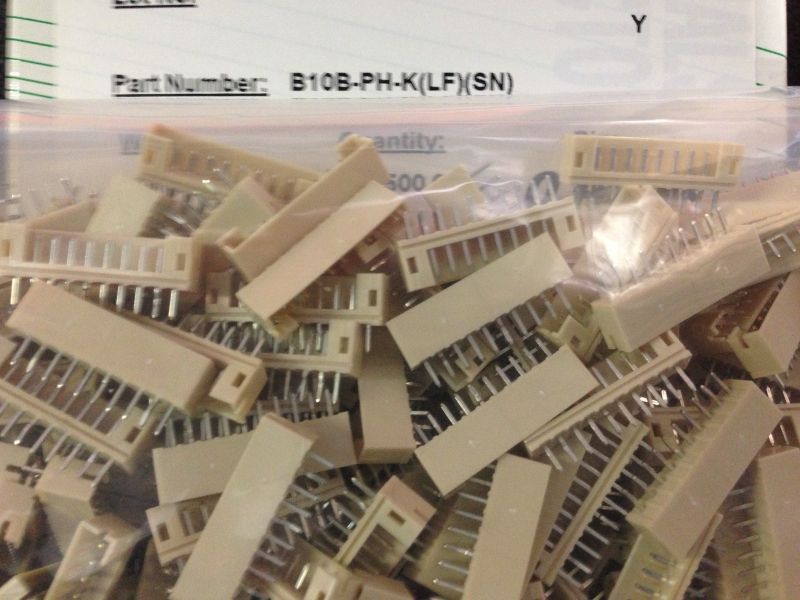

Buy the Buy JST PH Series Top Entry Header Part Number B10BPHKLFSN Online
Secure your electronic projects by ordering the JST PH Series B10BPHKLFSN header connector online. Designed for high-density PCB connections, it features a 2.00 mm pitch, 10 positions, and a natural ivory finish. Its durable, RoHS-compliant build with tin-plated copper-alloy posts ensures excellent conductivity and long-term reliability. Whether for through-hole or press-fit mounting, this connector offers easy assembly and dependable performance in compact electronic devices. Purchase today for efficient, robust circuit connections ready for demanding applications.
Order your JST PH Series B10BPHKLFSN top-entry header today and enjoy high-density, reliable PCB connections with robust construction and long-lasting performance.
Frequently Asked Questions
Where can I buy JST B10BPHKLFSN?
You can click on the BUY or RFQ button to purchase B10BPHKLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B10BPHKLFSN?
You can download the B10BPHKLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B10BPHKLFSN?
JST
