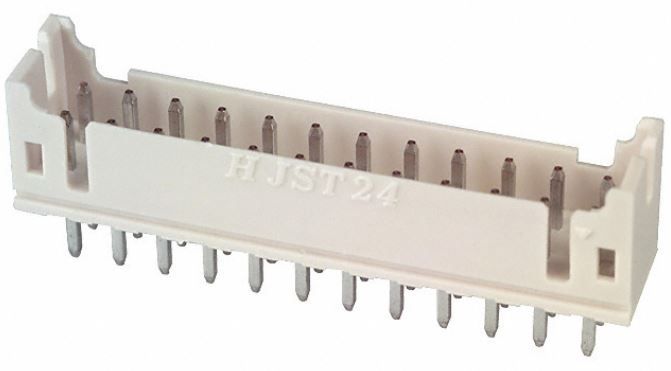

JST B24BPHDSSLFSN Male Header Connector
This versatile 24-position male header connector from the PHD Series ensures reliable connections in electronic assemblies. Designed with a robust tin-plated contact and a natural UL94V-0 polyamide housing, it supports 28-22 AWG wires, making it suitable for low-voltage applications up to 250V AC/DC. The connector features a top-entry design with a secure detent lock to prevent disconnection, ensuring stable operation across a temperature range of -25°C to +85°C. Ideal for compact, high-density electronics, it meets RoHS standards for environmentally friendly manufacturing.
JST B24BPHDSSLFSN Male Header Connector Specifications:
- Number of positions: 24
- Current rating: 3A AC/DC (AWG #22)
- Voltage rating: 250V AC/DC
- Temperature range: -25°C to +85°C
- Contact Resistance: Initial 10mΩ max, after environmental testing 20mΩ max
- Insulation Resistance: 1000MΩ min
- Withstanding Voltage: 800V AC/minute
- Applicable wire: AWG #28 to #22
- Housing Material: Glass-filled nylon, UL94V-0, natural
- Contact Material: Copper alloy, tin-plated with reflow treatment
- Connector type: Male header, top entry, double-row
- RoHS compliant
Buy the JST Series PHD: 24-Position Top Entry Male Header Connector
Get your JST Series PHD 24-position male header connector now and enjoy fast delivery. This connector offers a reliable, secure connection with a detent lock system, perfect for compact electronic devices. Crafted from high-quality tin-plated copper contacts and durable nylon housing, it supports wire sizes from 28 to 22 AWG. Rated for 250V and operating within -25°C to +85°C, it meets RoHS standards, making it an ideal choice for building safe and efficient electronic assemblies quickly and easily online.
Order your JST Series PHD 24-position male header connector today and ensure secure, reliable connections for your high-density electronics projects.
Frequently Asked Questions
Where can I buy JST B24BPHDSSLFSN?
You can click on the BUY or RFQ button to purchase B24BPHDSSLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B24BPHDSSLFSN?
You can download the B24BPHDSSLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B24BPHDSSLFSN?
JST
