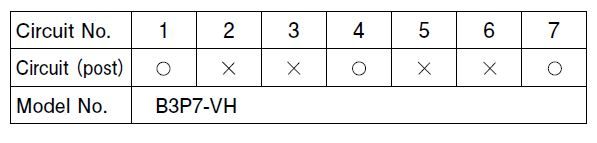

JST B3P7VHLFSN VH Connector
The VH Series connector features a 3.96mm pitch suitable for reliable electrical connections. It is rated for 250V and supports wire gauge ranges from 22 to 16 AWG, making it suitable for various applications requiring secure and stable connections. Constructed from phosphor bronze with tin-plated reflow treatment, these connectors are compliant with RoHS and UL94V-0 flame rating. Available in top and side entry types with PCB stabilizer, they deliver high current capacity, environmental durability, and excellent contact resistance, fitting well in consumer electronics, power supply, and signal circuits.
JST B3P7VHLFSN VH Connector Specifications:
- Current rating: 10A AC, DC (AWG #16)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/ 10mΩ max. after environmental testing/ 20mΩ max.
- Insulation resistance: 1,000MΩ minimum
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #22 to #16
- Applicable PC board thickness: 1.6mm
- Material: Phosphor bronze, tin-plated (reflow treatment)
- RoHS compliant, UL94V-0 flame rating
- Dimensions vary by model, typical pitch 3.96mm, wire range 22-16 AWG
Buy the JST Series VH Connector: 3.96mm Pitch 250V Support Wire Range 22-16 AWG
Purchase the JST VH Connector online today for dependable electrical connections with a 3.96mm pitch, rated for 250V AC/DC, supporting wire gauges from 22 to 16 AWG. This connector's robust construction from phosphor bronze and tin-plated finish guarantees reliable contact and environmental durability. Suitable for consumer electronics, power supply, and signal circuits, it is RoHS compliant and UL94V-0 rated, offering high current capacity, excellent insulation resistance, and withstand voltage. Easy to assemble with multiple entry types, ensuring versatility in various electronic applications.
Order your JST Series VH Connector today and ensure secure, reliable electrical connections in your electronic projects with durable, RoHS compliant design.
Frequently Asked Questions
Where can I buy JST B3P7VHLFSN?
You can click on the BUY or RFQ button to purchase B3P7VHLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B3P7VHLFSN?
You can download the B3P7VHLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B3P7VHLFSN?
JST
