JST B5PVRLFSN Connector Header
This VR series top-entry connector header with 5 positions features a 3.96mm pitch and a friction lock mechanism for secure connection. Made from glass-filled PA 66 and tin-plated brass, it supports up to 250V and is RoHS compliant. Suitable for PCB applications, it offers reliable electrical performance with a rated current of 7A, and accommodates AWG #26 to #18 wires. The connector's design ensures easy assembly and durable corrosion resistance, making it ideal for power distribution in electronic devices and industrial controls.
JST B5PVRLFSN Connector Header Specifications:
- Pitch: 3.96mm
- Number of positions: 5
- Rated Voltage: 250V AC/DC
- Rated Current: 7A
- Operating Temperature: -25°C to +85°C
- Contact Material: Brass, tin-plated
- Housing Material: Glass-filled PA 66, UL94V-0
- Wire Range: AWG #26 to #18
- RoHS compliant
- Receptacle type: Top entry

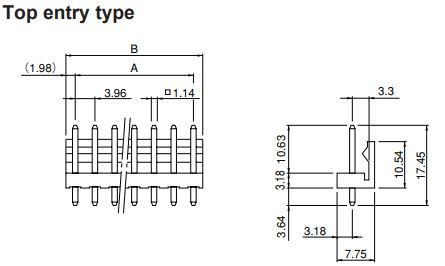

- Dimensions: A - 3.96mm, B - 11.88mm
- Certifications: RoHS, Recognized component
- Suitable for PCB thickness: 0.8 to 1.6mm
- Withstanding Voltage: 1,500V AC/minute
- Insulation resistance: 1,000MΩ minimum
- Contact resistance: Initial/10mΩ, after environmental testing/20mΩ
- Temperature Range: -25°C to +85°C
Buy the Buy Industry Electronics Connectors Part Number B5PVRLFSN Online
Secure your electronic projects with the high-quality VR series connector header. Featuring a 3.96mm pitch, 250V rating, and a robust tin-plated brass contact, this connector ensures reliable electrical performance. Its easy-to-assemble top-entry design makes it suitable for PCB applications, supporting wires from AWG #26 to #18. Made from durable, RoHS-compliant materials, it provides long-lasting corrosion resistance and operational stability across a wide temperature range, perfect for industrial and consumer electronics requiring dependable power connections.
Order your VR series top-entry connector header with part number B5PVRLFSN today and give your PCB assemblies the reliable, corrosion-resistant connection they deserve.
Frequently Asked Questions
Where can I buy JST B5PVRLFSN?
You can click on the BUY or RFQ button to purchase B5PVRLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B5PVRLFSN?
You can download the B5PVRLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B5PVRLFSN?
JST
