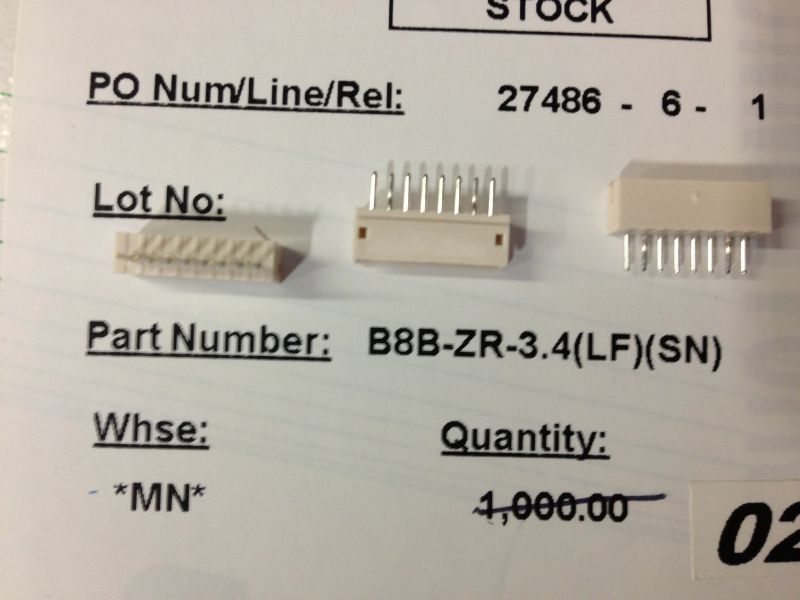

JST B8BZR34LFSN Insulation Displacement Connector
The ZR Connectors are compact, dual U-slot insulation displacement connectors designed for reliable connections even in harsh environments. Featuring a 1.5mm pitch, they support AWG #30 and #28 wires with a current rating of 0.7A and a voltage rating of 50V. Their distortion-resistant construction and 3-point grip ensure stable connections during environmental stresses. Suitable for PCB mounting on 0.6 to 1.2mm thick boards, they comply with RoHS and are ideal for electronic and industrial wiring. Compatible with ZH crimp style connectors, these connectors are recognized for quality and durability.
JST B8BZR34LFSN Insulation Displacement Connector Specifications:
- Current rating: 0.7A AC, DC (AWG #28)
- Voltage rating: 50V AC, DC
- Temperature range: -25°C to +85°C
- Insulation resistance: 500MΩ min
- Withstanding voltage: 500V AC/minute
- Applicable wire: UL1571, AWG #30, #28, 7 strands, tin-coated
- Insulation O.D.: 0.7 to 0.8mm
- Applicable PCB thickness: 0.6 to 1.2mm, 1.6mm
- Material: Contact made of phosphor bronze, tin-plated; Housing of glass-filled PA 66, UL94V-0
- RoHS compliant, Recognized E60389
- Contact resistance: 15mΩ typical
- Durability: Repeated mating cycles suitable for industrial use
Buy the JST Series ZR Connectors: 1.5mm Pitch Insulation Displacement Connectors
Order JST ZR Connectors online today to ensure reliable, quick connections for your electronic projects. Featuring a compact design and distortion-resistant construction, these connectors support AWG #30 and #28 wires with a current rating of 0.7A and a voltage rating of 50V. Suitable for PCB mounting on various thicknesses, they comply with RoHS standards. Perfect for environmental resilience and industrial-grade performance, these connectors provide a secure, stable connection for electronic assemblies. Purchase now for quality wiring solutions.
Get JST ZR Connectors today—built for precision and long-lasting durability in electronic wiring and industrial applications.
Frequently Asked Questions
Where can I buy JST B8BZR34LFSN?
You can click on the BUY or RFQ button to purchase B8BZR34LFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B8BZR34LFSN?
You can download the B8BZR34LFSN datasheet or visit the JST website for support.
Who is the manufacturer of B8BZR34LFSN?
JST
