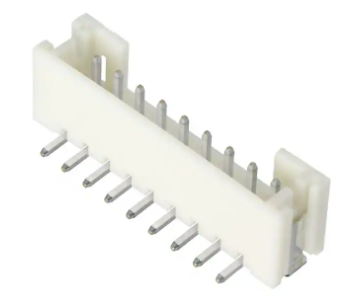

JST B9BPHSM4TBTLFSN PCB Header Connector
This surface mount 9-position header connector features a 2.0 mm pitch and a low-profile design, ideal for high-density PCB connections in various industrial applications. It offers reliable contact, RoHS compliance, and a fully shrouded header to ensure secure connections. The connector supports wire sizes from AWG #32 to #24 and PCB thicknesses between 0.8 and 1.6 mm. Its compact, surface-mount structure facilitates easy assembly, reduces space, and maintains stability in electronic systems. Suitable for automation, control systems, and electronic device integration, it ensures dependable electrical performance under operational conditions.
JST B9BPHSM4TBTLFSN PCB Header Connector Specifications:
- Pitch: 2.0 mm
- Number of positions: 9
- Current rating: 2A AC/DC (AWG #24)
- Voltage rating: 100V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/10mΩ max., after environmental testing/20mΩ max.
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 800V AC/minute
- Applicable wire: AWG #32 to #24
- PCB thickness: 0.8 to 1.6 mm
- Material: Phosphor bronze, tin-plated
- Standards: RoHS compliant, recognized E60389, certified LR20812 & R75087
Buy the Cece B9BPHSM4T – Reliable PCB Header Connector for Industrial Applications
Purchase the Cece B9BPHSM4T surface mount 9-position header connector online today and enhance your electronic project with a high-quality, reliable component. Designed for PCB connections requiring a 2.0 mm pitch, this connector offers secure contact, RoHS compliance, and easy assembly. Its compact form factor makes it ideal for space-constrained environments in automation, control panels, and electronic devices. Order now to benefit from fast delivery, genuine quality, and technical support for your industrial and electronic applications.
Buy Cece B9BPHSM4T now and experience unmatched reliability and performance for your electronic assemblies.
Frequently Asked Questions
Where can I buy JST B9BPHSM4TBTLFSN?
You can click on the BUY or RFQ button to purchase B9BPHSM4TBTLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part B9BPHSM4TBTLFSN?
You can download the B9BPHSM4TBTLFSN datasheet or visit the JST website for support.
Who is the manufacturer of B9BPHSM4TBTLFSN?
JST
