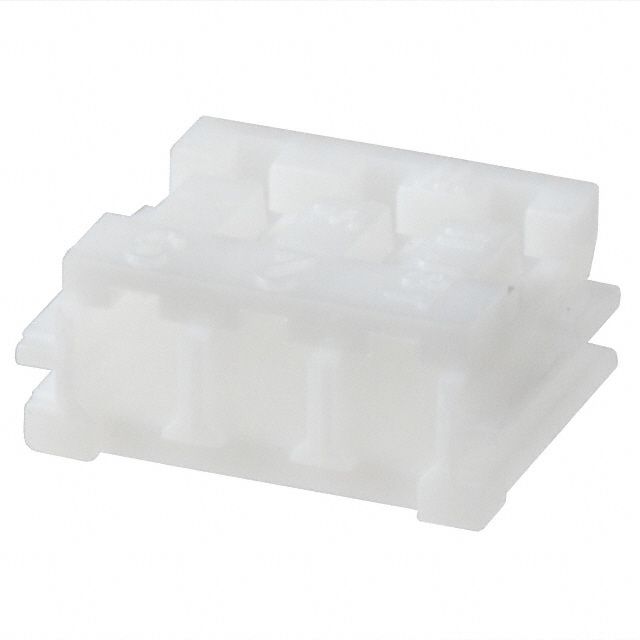

JST EHR3 Connector Housing
This 3-position connector housing from the EH series features a 2.5mm pitch, designed for high-density PCB connections. It has a female socket, free-hanging design, and is intended for crimp termination, offering a reliable and compact solution for internal wiring. Made from UL94V-0 rated PA 66 material, it ensures flame resistance and durability. Suitable for electronic assembly, it supports applications requiring precise, low-profile connectors. Easy to insert and remove, this housing enhances electrical and mechanical stability in dense electronic modules.
JST EHR3 Connector Housing Specifications:
- Pitch: 2.5mm
- Number of Positions: 3
- Housing Material: PA 66, UL94V-0, natural (white)
- Design: Female socket, free-hanging
- Termination: Crimp
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Temperature Range: -25°C to +85°C
- Applicable Wire: AWG #32 to #22
- Housing Color: Natural (white)
- RoHS compliant
- Standards: Recognized E60389, Certified LR20812
Buy the Buy JST EH Series Connector Housing Part Number EHR3 Online
Purchase the JST EH series connector housing EHR3 online today to streamline your electronic assembly. This durable, high-density connector is ideal for PCB wiring, ensuring reliable electrical connections. Its design with a female socket, 2.5mm pitch, and crimp termination makes installation simple and secure. Made from flame-resistant UL94V-0 rated material, it offers excellent safety and durability. Suitable for various electronic applications, buying online guarantees fast delivery, genuine quality, and technical support for your projects.
Buy JST EHR3 connector housing now and enhance your electronic connectivity with a compact, reliable high-density crimp connection solution.
Frequently Asked Questions
Where can I buy JST EHR3?
You can click on the BUY or RFQ button to purchase EHR3 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part EHR3?
You can download the EHR3 datasheet or visit the JST website for support.
Who is the manufacturer of EHR3?
JST
