JST ZER02VS connector receptacle
This ZE Series 2-position female socket connector receptacle with a 1.5mm contact pitch offers reliable crimping connection, supporting wire sizes from 30 to 24 AWG. Rated for 100V AC/DC and 2A current, it features a secure lock structure, high insulation resistance, and withstands voltage of 500V AC. Its natural color and compact design make it ideal for precise electronic applications, ensuring stable mating and long-term durability in various electronic assemblies.
JST ZER02VS connector receptacle Specifications:
- Current rating: 2A AC, DC
- Voltage rating: 100V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/20mΩ max, after testing/40mΩ max
- Insulation resistance: 500MΩ min
- Withstanding voltage: 500V AC/minute
- Applicable wire: Conductor size AWG 30 to 24, Insulation O.D. 0.8 to 1.2mm
- Contact material: Copper alloy, tin-plated (reflow treatment)
- Protection feature: Secure lock structure
- RoHS compliant: Yes

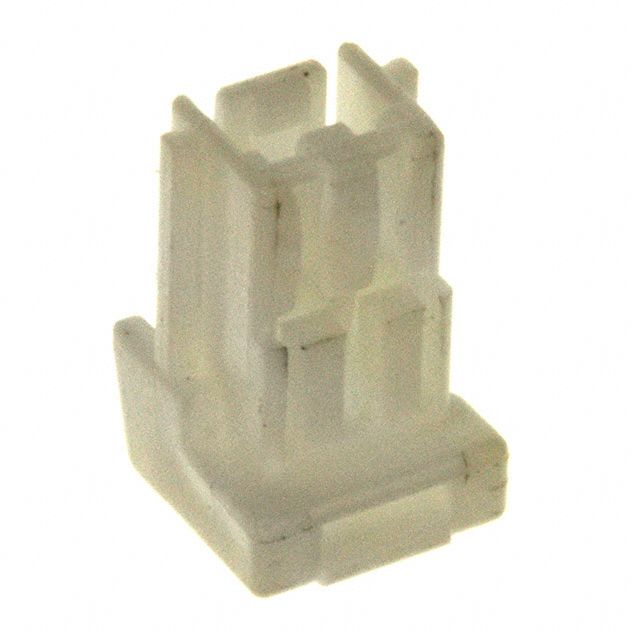

Buy the Buy JST ZE Series Connector Part Number ZER02VS Online
Order the JST ZE Series connector receptacle ZER02VS online today to ensure a secure, reliable connection for your electronic projects. This 2-position socket with a 1.5mm pitch is perfect for crimping, supporting wire sizes from AWG 30 to 24. Rated for 100V and 2A current, it features a secure locking mechanism, high insulation resistance, and a durable tin-plated copper alloy contact. Compact and RoHS compliant, it is ideal for precise electrical and electronic applications requiring stable, long-lasting connections.
Get JST ZER02VS today—designed for reliable connection and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy JST ZER02VS?
You can click on the BUY or RFQ button to purchase ZER02VS from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part ZER02VS?
You can download the ZER02VS datasheet or visit the JST website for support.
Who is the manufacturer of ZER02VS?
JST
