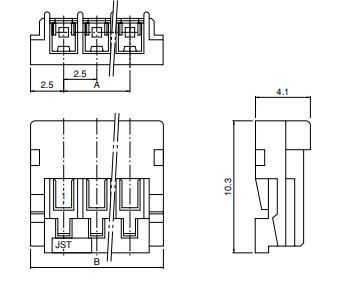

JST HRP02S HR Series Connector
This HR Series receptacle connector features a 2-position configuration with a 2.5mm pitch, ideal for reliable connections in electronic assemblies. Designed for free hanging mounting, it employs crimp-style terminals for secure wiring. Made from phosphor bronze with tin-plating, it offers high durability and RoHS compliance. Suitable for AWG #26 to #22 wire gauges, it maintains excellent electrical performance with a current rating of 3A and a voltage rating of 250V. The connector ensures dependable performance across temperatures from -25°C to +85°C, with high insulation resistance up to 1,000MΩ.
JST HRP02S HR Series Connector Specifications:
- Current rating: 3A AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: 10mΩ max. initial, 20mΩ max. after environmental testing
- Insulation resistance: at least 1,000MΩ
- Withstanding voltage: 1,000V AC for 1 minute
- Applicable wire: AWG #26 to #22
- Applicable PC board thickness: 0.8 to 1.6mm
- Material: Phosphor bronze, tin-plated
- RoHS compliant
- Connector body: Natural finish
- Contact pitch: 2.5mm
- Mounting style: Free hanging
Buy the Buy HR Series Connector Part Number HRP02S Online
Discover the convenience of purchasing the HR Series 2-position connector online. Engineered for durability, it features a 2.5mm pitch, crimp-style installation, and high-quality tin-plated contacts. Perfect for small electronic devices, it ensures secure, stable electrical connections with a current capacity of 3A and voltage of 250V. Its RoHS compliance and wide temperature range make it suitable for various industrial and consumer applications. Order now to enhance your assembly process with trusted JST quality and quick delivery.
Buy HRP02S now and experience dependable electrical connections for your electronic projects, with high reliability and RoHS compliance from JST.
Frequently Asked Questions
Where can I buy JST HRP02S?
You can click on the BUY or RFQ button to purchase HRP02S from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part HRP02S?
You can download the HRP02S datasheet or visit the JST website for support.
Who is the manufacturer of HRP02S?
JST
