JST 05RZWPVWKNN Waterproof Connector Receptacle
This 5-position waterproof connector receptacle assembly from the ZWP series features a compact 1.5mm pitch design with reliable waterproofing rated at IPX7 (JIS C 0920 and IEC 60529). It supports wire gauges from AWG 28 to 24 with tin-plated copper alloy contacts. Rated for 50V AC/DC and 2A current, it ensures excellent insulation resistance, withstands 500 VAC voltage, and operates within a temperature range of -25°C to +85°C. Its durable construction makes it ideal for precise, moisture-resistant electronic connections in various applications.
JST 05RZWPVWKNN Waterproof Connector Receptacle Specifications:
- Pitch: 1.5 mm
- Current Rating: 2 A AC/DC
- Voltage Rating: 50 V AC/DC
- Temperature Range: -25°C to +85°C
- Contact Resistance: Initial / 10 mΩ max, After tests / 20 mΩ max
- Insulation Resistance: 500 MΩ min.
- Withstanding Voltage: 500 VAC/minute
- Applicable Wire: Insulated copper stranded wire, tin-plated
- Wire Range: AWG 28 to 24, insulation O.D 0.9 to 1.2 mm
- Waterproof Level: Grade 7, IPX7
- Material: Copper alloy, tin-plated, PBT housing
- Seal Material: Silicone rubber
- RoHS2 Compliant

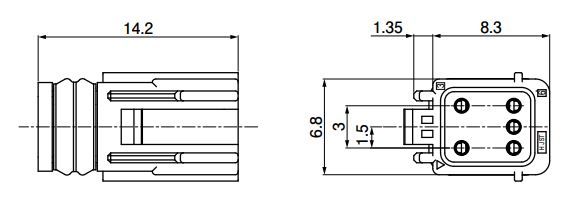

Buy the Buy JST ZWP Connector Part Number 05RZWPVWKNN Online
Purchase the waterproof connector receptacle from the ZWP series online today. Featuring a 1.5mm pitch, rated for 50V and 2A, it ensures secure, moisture-resistant connections ideal for industrial, automotive, and consumer electronic applications. Its IPX7 waterproof rating makes it suitable for outdoor and harsh environments, while the durable tin-plated contacts provide reliable electrical conductivity. Easy to install, RoHS2 compliant, and supported by JST’s quality standards, this connector guarantees long-lasting performance and peace of mind for your assembly needs.
Buy JST ZWP connector part number 05RZWPVWKNN now and experience unmatched reliability and waterproof performance for your electronic projects.
Frequently Asked Questions
Where can I buy JST 05RZWPVWKNN?
You can click on the BUY or RFQ button to purchase 05RZWPVWKNN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part 05RZWPVWKNN?
You can download the 05RZWPVWKNN datasheet or visit the JST website for support.
Who is the manufacturer of 05RZWPVWKNN?
JST
