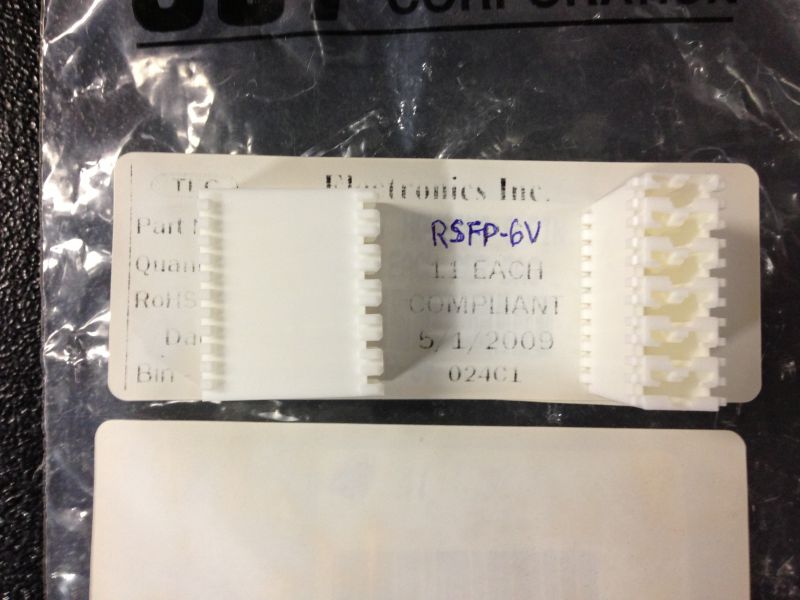

JST RSFP6V RSF Series Female Connector
The RSF Series header is a 6-position, 5.0mm pitch female connector designed for secure locking and easy insertion. Compatible with 14-22 AWG wires, it offers reliable, high-performance connections. It features a lock mechanism to prevent accidental disengagement, stable contact performance for high currents, and lanceless contacts to avoid backout issues. The housing options include keyed and cavity-blocking features for customizable keying and color options. This connector is suitable for electronic assemblies requiring dependable and versatile connections.
JST RSFP6V RSF Series Female Connector Specifications:
- Current rating: 20A AC, DC max.
- Voltage rating: 250V AC, DC max.
- Temperature range: -40°C to +105°C
- Contact resistance: 3mΩ initial/6mΩ after testing
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 2,000V AC/minute
- Applicable wire: #22 to #12 AWG
- Applicable tab: #250, 0.8mm thick
- Material: Nylon 66, UL94V-0, natural
- Housing options: Keyed, cavity blocking, various colors
- Dimensions: 20.8mm (0.819 inch) pitch, 6 positions
- Standards: Recognized E60389, Certified C22.2 #182.3-M1987
Buy the JST Series RSF High-Current Connectors: RSFP6V
Get the JST RSF Series female connector today for your electronic projects. This 6-position, 5.0mm pitch connector offers secure locking, stable high-current performance, and versatile housing options including keyed and color variants. Designed for connecting 14-22 AWG wires, it features lanceless contacts to prevent backout, a robust locking mechanism, and reliable electrical characteristics. Perfect for streamlined, dependable connections in electronics and manufacturing, order now online and enhance your assembly quality with this durable, high-performance connector.
Order your JST Series RSF RSFP6V connector today and ensure your electronic assemblies are equipped with reliable, secure connectors that deliver high performance.
Frequently Asked Questions
Where can I buy JST RSFP6V?
You can click on the BUY or RFQ button to purchase RSFP6V from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part RSFP6V?
You can download the RSFP6V datasheet or visit the JST website for support.
Who is the manufacturer of RSFP6V?
JST
