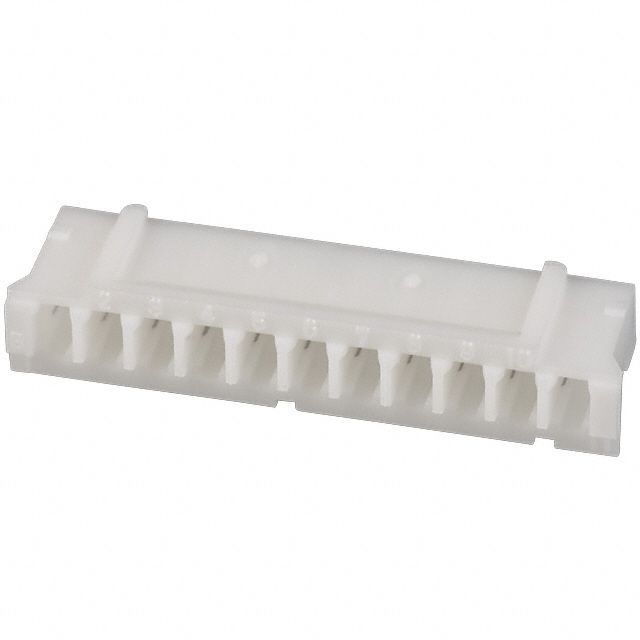

JST PHR11 connector housing
This PH Series connector housing with 11 positions and a 2.00mm pitch is designed for high-density, reliable connections in electronic devices. Suitable for free-hanging applications, it features crimp contacts, a natural color finish, and high environmental resistance. The connector supports wire ranges from AWG #32 to #24, with current ratings up to 2A and voltage ratings of 100V. The compact, low-profile design of approximately 8mm height after mounting makes it ideal for space-constrained environments, ensuring secure PCB connections and effortless assembly.
JST PHR11 connector housing Specifications:
- Pitch: 2.00mm
- Number of Positions: 11
- Current Rating: 2A AC/DC (AWG #24)
- Voltage Rating: 100V AC/DC
- Temperature Range: -25°C to +85°C
- Contact Resistance: Initial/10mΩ, Environmental/20mΩ
- Insulation Resistance: 1,000MΩ min.
- Withstanding Voltage: 800V AC
- Applicable Wire: AWG #32 to #24
- PCB Thickness: 0.8 to 1.6mm
- Material: Phosphor bronze, tin-plated
- Connector Type: Fully shrouded header, surface-mount (SMT), top entry
- RoHS Compliant
- Tolerances: ±0.05mm for centers
Buy the JST PHR11 – Reliable 2.00mm Pitch Connector for Industrial Applications
Order the JST PHR11 connector housing online today and secure a highly reliable, space-efficient connection solution for your electronic projects. Designed for high-density applications, this 11-position connector with 2.00mm pitch ensures secure and durable PCB wiring. Its compact, low-profile design supports environmental resistance and easy assembly, making it ideal for space-constrained devices. With crimp contacts and RoHS compliance, this connector guarantees quality performance, quick procurement, and seamless integration in manufacturing or repair processes. Experience the convenience and dependability of online purchasing now.
Buy JST PHR11 now and experience unmatched reliability and performance in space-saving PCB connections.
Frequently Asked Questions
Where can I buy JST PHR11?
You can click on the BUY or RFQ button to purchase PHR11 from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part PHR11?
You can download the PHR11 datasheet or visit the JST website for support.
Who is the manufacturer of PHR11?
JST
