JST RT01T13BLF Surface-Mount Connector
The SMF connector is a compact, single-circuit surface-mount device designed for high-density printed circuit boards. Suitable for 1.0mm and 1.3mm diameter pins, it features a funnel-shaped lead-in for effortless insertion and high retention force. With a current rating of 5A and a temperature range of -25°C to +85°C, it ensures reliable electrical connections. Made from tin-plated brass and UL94V-2 rated nylon, it complies with RoHS standards, making it an eco-friendly choice for modern electronic assemblies.
JST RT01T13BLF Surface-Mount Connector Specifications:
- Current rating: 5A AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/10mΩ max, after environmental testing/15mΩ max
- Insulation resistance: 1,000MΩ min
- Withstanding voltage: 500V AC/minute
- Applicable wire: AWG #26 to #20
- Applicable PC board thickness: 1.6mm
- Housing material: PA 66, UL94V-2, natural (white)
- Contact material: Brass, tin-plated (reflow treatment)
- Applicable pin diameter: 1.0mm and 1.3mm
- Standards: FW Recognized £60389, LR20812 certified
- RoHS compliant: Yes

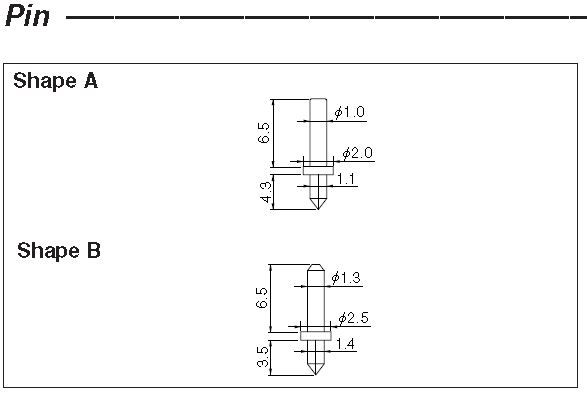

- Connector shape: A
- Applicable PCB hole sizes: 1.0mm and 1.3mm
- Package: 1,000 pieces per reel
Buy the Buy JST SMF Connector Part Number RT01T13BLF Online
Order the JST SMF Surface-Mount Connector RT01T13BLF today for high-density PCB applications. This reliable connector supports 5A current, functions within -25°C to +85°C, and is made from eco-friendly lead-free materials. Ideal for compact electronic device assemblies, it features a nickel-coated contact and is RoHS compliant. With a proven design for effortless insertion and high retention force, this connector ensures secure and durable electrical connections. Buy now for superior quality and quick delivery.
Get JST SMF connector RT01T13BLF today—designed for reliable high-density PCB connections and environmentally friendly lead-free materials.
Frequently Asked Questions
Where can I buy JST RT01T13BLF?
You can click on the BUY or RFQ button to purchase RT01T13BLF from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part RT01T13BLF?
You can download the RT01T13BLF datasheet or visit the JST website for support.
Who is the manufacturer of RT01T13BLF?
JST
