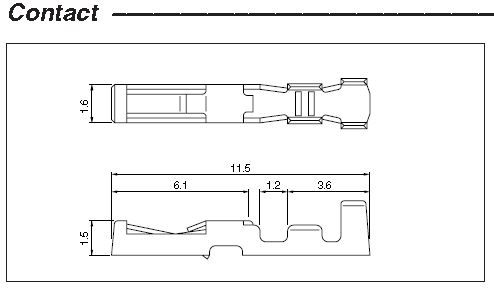

JST RFSC2210LFSN RF Connector
This RF connector features 2.54mm pitch and is designed for reliable, low-cost crimping connections suitable for connecting wires to printed circuit boards. It offers high-density spacing, with contacts arranged in two rows for space-saving configurations, and supports easy insertion due to resilient lances. Its durable construction withstands repeated insertions, ensuring consistent contact performance. Compatible with AWG 30 to 24 wires and PCB thicknesses from 1.2 to 1.6mm, it meets RoHS standards. The gold-plated variation ensures excellent electrical conductivity and corrosion resistance for a variety of electronic applications.
JST RFSC2210LFSN RF Connector Specifications:
- Current rating: 2A AC, DC (AWG #24)
- Voltage rating: 250V AC, DC
- Temperature range: -55°C to +105°C (gold-plated), -55°C to +85°C (tin-plated)
- Contact resistance: Initial value/15mΩ max, after testing/30mΩ
- Insulation resistance: 1,000MΩ min
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #30 to #24
- Applicable PCB thickness: 1.2 to 1.6mm
- RoHS compliant
- Housing material: PBT, UL94V-0, black
- Connector dimensions vary by model, typical length 5.08mm to 35.56mm, suitable for high-density applications
- Features: Reusable, easy to insert, and with polarizing key to prevent misinsertion
Buy the Buy JST RF Connector Part Number RFSC2210LFSN Online
Purchase the JST RF connector RFSC2210LFSN online today to benefit from reliable, corrosion-resistant connections suitable for high-density electronic circuits. Featuring gold plating for optimal conductivity and a robust crimp style, this connector is ideal for precise wire terminations in automation and control systems. With support for AWG 30 to 24 wires and a temperature range up to 105°C, it ensures long-lasting performance. Ideal for connecting wires to printed circuit boards, it offers ease of installation and compliance with RoHS standards, making it a vital component for your electronic assembly tasks.
Order your JST RF connector RFSC2210LFSN today and ensure dependable, corrosion-resistant electrical connections for your PCB and wiring projects.
Frequently Asked Questions
Where can I buy JST RFSC2210LFSN?
You can click on the BUY or RFQ button to purchase RFSC2210LFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part RFSC2210LFSN?
You can download the RFSC2210LFSN datasheet or visit the JST website for support.
Who is the manufacturer of RFSC2210LFSN?
JST
