JST RSFP2V Electrical Connector
The RSF housing with a 2-position secure locking mechanism offers easy insertion and reliable locking for electrical connections. Featuring a 5.0mm pitch, natural finish, and compatibility with #250 tabs, it ensures stable contact performance even under high current. Its design prevents accidental disconnection with a secure locking spring and lanced contacts, simplifying termination and harness assembly. Suitable for industrial automation, wiring, and electronic device applications where durability, safety, and easy maintenance are essential for optimal performance and system reliability.
JST RSFP2V Electrical Connector Specifications:
- Current rating: 20A AC, DC max.
- Voltage rating: 250V AC, DC max.
- Temperature range: -40°C to +105°C
- Contact resistance: Initial 3mΩ max., After environmental testing 6mΩ max.
- Insulation resistance: ≥1000MΩ
- Withstanding voltage: 2000V AC/minute
- Applicable wire: #22 to #12 AWG
- Applicable tab: #250, 0.8mm(.031") thick
- Material: Nylon 66, UL94V-0, natural (white), other colors available upon request

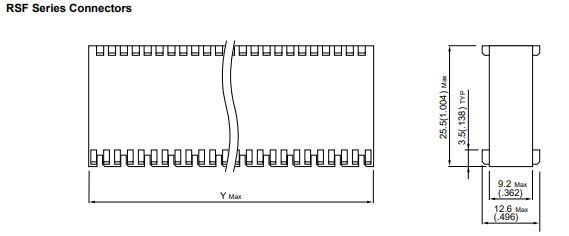

- Physical dimensions: 5.0mm pitch, 20.8mm length, 12.6mm width, 7.4mm min height
- Housing features: Secure locking, easy mating, keying options available
Buy the JST RSF – Reliable Electrical Connector for Industrial Applications
Secure and dependable electrical connector designed for industrial wiring, automation, and electronic systems. Featuring a 2-position lock, easy insertion, and stable contact performance, it ensures safety and durability. Its 5.0mm pitch and compatibility with #250 tabs make it ideal for various electrical applications requiring reliable connections. Available in multiple colors and keying options, this connector simplifies assembly and maintenance, delivering consistent performance under high current conditions. Order online today for fast delivery and quality assurance.
Buy JST RSF connector with secure locking mechanism now and experience unmatched reliability and performance in electrical wiring and automation systems.
Frequently Asked Questions
Where can I buy JST RSFP2V?
You can click on the BUY or RFQ button to purchase RSFP2V from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part RSFP2V?
You can download the RSFP2V datasheet or visit the JST website for support.
Who is the manufacturer of RSFP2V?
JST
