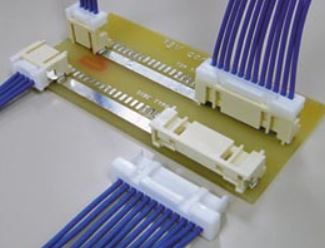

JST PBVP08VS 8-Position Housing
This white housing for the PBV series features 8 positions, offering protection and organization for electronic components. Crafted from durable materials, it ensures a secure fit and reliable performance in electronic assemblies. Its design includes a secure locking structure and a sucking area to prevent deformation of contact and ensure stable connections. Suitable for PCB connections in flat television and other electronic devices, it supports crimping type connections with high environmental resistance, including temperature range -25°C to +85°C and withstand voltage up to 800V AC/minute, making it ideal for various electronic applications.
JST PBVP08VS 8-Position Housing Specifications:
- Material: Polyamide resin, UL94V-0, natural (ivory)
- Number of Positions: 8
- Color: White
- Applicable wire: AWG#28 to #22, insulation O.D. 0.9 to 1.5mm
- Current Rating: 3A AC, DC
- Voltage Rating: 100V AC, DC
- Temperature Range: -25°C to +85°C
- Contact Resistance: Initial max 10mΩ, after environmental testing max 20mΩ
- Insulation Resistance: Min 1,000 MΩ
- Withstanding Voltage: 800V AC per minute
- Dimensions: Based on model PBVP08VS, length approx 28.0mm, cross-sectional dimensions suited for standard PCB mounting
- Reinforced with copper-undercoated, tin-plated contacts for reliability
- Suitable for crimping and secure locking structures
- RoHS compliant
Buy the Buy JST PBV Series PBVP08VS Part Number PBVP08VS Online
Purchase the JST PBV Series PBVP08VS housing online to ensure reliable connection and optimal protection in your electronic assemblies. Crafted from high-quality UL94V-0 polyamide resin, this durable white enclosure features 8 positions for organizing and securing wires or components effectively. Suitable for PCB applications in flat televisions and other electronic devices, it supports crimping techniques with compatible AWG#28 to #22 wires. Its robust design withstands temperatures from -25°C to +85°C and voltage up to 800V AC, making it an excellent choice for professional electronics assembly.
Order your JST PBV Series PBVP08VS today and give your electronic projects the dependable quality and secure connection they deserve.
