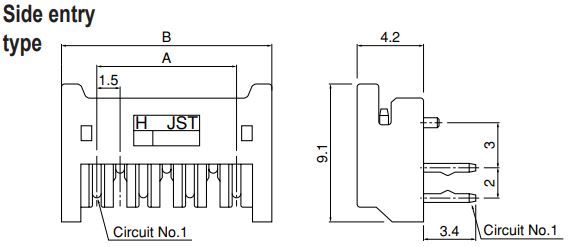

JST S15BCZHKB1LFSN PCB Connector
A 15-position side-entry through-hole connector header with a 1.5mm pitch, plated with tin for corrosion resistance. Suitable for reliable PCB connections in electronic assemblies. Designed with distortion-resistant construction, low insertion force, and compact profile for high-density packaging. Compatible with various wire sizes from AWG #26 and certified to UL 94V-0 and RoHS standards, it ensures safety and environmental compliance. Featuring copper alloy contacts and UL94V-0 housing material, this connector guarantees durability and dependable electrical performance in industrial and consumer electronics.
JST S15BCZHKB1LFSN PCB Connector Specifications:
- Pitch: 1.5mm
- Number of positions: 15
- Contact Material: Copper alloy, tin-plated (reflow treatment)
- Housing Material: PA 66, UL94V-0
- Corrosion Resistance: Tin plating
- Current Rating: 2A AC/DC
- Voltage Rating: 100V AC/DC
- Temperature Range: -25°C to +85°C
- RoHS compliant
- Certifications: UL Recognized E60389, RoHS
- Housing Color: Natural (grayish)
- Contact Resistance: ≤20mΩ
- Applicable Wire: AWG #26
- Initial Contact Resistance: ≤10mΩ
- Sealing: Not sealed
- Insulation Displacement: No
- Mounting Style: Through-hole
- Type: Side-entry header
- Dimension: 15.0mm length, 1.5mm pitch, typical profile
- Package: Reels or bulk, depending on order
Buy the Buy JST 15-Position Side Entry Connector Part Number S15BCZHKB1LFSN Online
Purchase the JST Series S15BCZHKB1LFSN connector online today to secure high-density, reliable PCB connections in your electronic projects. This 15-position side-entry connector features a 1.5mm pitch, tin plating for corrosion resistance, and rugged construction suitable for various applications. Its compact profile saves space and ensures stable, dependable electrical connections. Certified to UL and RoHS standards, it guarantees safety and environmental compliance. Available for quick delivery, order now to improve your assemblies with durable and precise connector solutions that meet industry standards.
Order your JST Series S15BCZHKB1LFSN connector today and ensure reliable PCB connections with high-quality, corrosion-resistant, and compact design.
Frequently Asked Questions
Where can I buy JST S15BCZHKB1LFSN?
You can click on the BUY or RFQ button to purchase S15BCZHKB1LFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part S15BCZHKB1LFSN?
You can download the S15BCZHKB1LFSN datasheet or visit the JST website for support.
Who is the manufacturer of S15BCZHKB1LFSN?
JST
