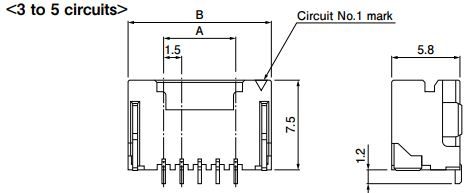

JST SM05BZESSTBLFSN Right-Angle Connector Header
This surface mount right-angle connector header features 5 positions with a 1.50mm pin spacing, designed for reliable, space-saving electronic connections. Constructed from UL94V-0 rated natural polyamide with copper alloy contacts that are copper-undercoated and tin-plated for enhanced conductivity and corrosion resistance. It complies with RoHS standards and is supplied on embossed tape for easy automated assembly. Suitable for compact electronic devices needing durable and stable interconnects, this connector ensures secure mating, wiping action, and consistent electrical performance in various industrial and consumer applications.
JST SM05BZESSTBLFSN Right-Angle Connector Header Specifications:
- Pin count: 5 positions
- Pin spacing: 1.50mm (0.059 inches)
- Contact Material: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Housing Material: UL94V-0 polyamide, natural color
- RoHS compliance: Yes
- Reinforcement: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Supply form: Embossed tape with suction tape
- Operating temperature range: -25°C to +85°C
- Contact resistance: Not specified externally but ensured via high-quality plating and locking features
- Standards: RoHS compliant, UL94V-0
- Application: Suitable for automated assembly in compact electronic modules requiring reliable right-angle connections
Buy the JST Series SM05B ZESSK: 1.50mm Right-Angle Connector Header
Enhance your electronic assemblies with this reliable right-angle connector header featuring 5 positions and a 1.50mm pitch. Made with high-quality, RoHS-compliant materials, it offers excellent durability, corrosion resistance, and secure mating. Designed for surface mounting, it simplifies automated assembly processes and saves space in compact designs. Its copper alloy contacts with tin plating ensure low contact resistance and stable electrical performance. Perfect for industrial, consumer, and hobby electronics requiring space-efficient, dependable interconnect solutions.
Order your JST Series SM05BZESSTBLFSN right-angle connector header today and ensure space-efficient, reliable connections for your electronic projects.
