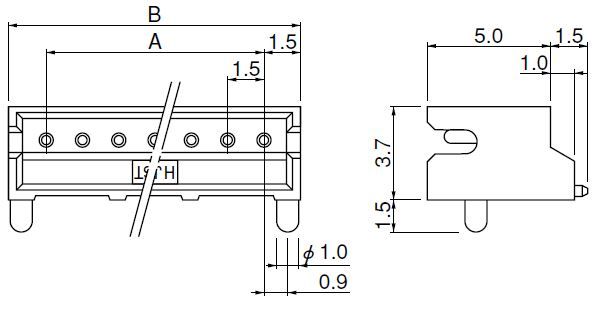

JST S6BZRSM2TFLFSN shrouded connector header
The ZR Connector series features a compact 1.5mm pitch shrouded connector header designed for reliable surface mounting applications. It includes twin U-slot insulation displacement sections, a 3-point grip construction, and distortion-resistant design, ensuring a secure connection even under severe environmental conditions. It complies with RoHS standards and is compatible with UL1571 UL styles. The connector supports wire sizes AWG #28 and #30, with a contact resistance of 15 mΩ max, and withstands voltage of 50V AC/DC. Ideal for precise, durable connections in compact electronic devices and automation systems.
JST S6BZRSM2TFLFSN shrouded connector header Specifications:
- Pitch: 1.5mm
- Applicable wire: AWG #28, #30, tin-coated, 7 strands
- Insulation O.D.: 0.7 to 0.8mm
- Current rating: 0.7A AC/DC
- Voltage rating: 50V AC/DC
- Operating temperature: -25°C to +85°C
- Insulation resistance: 500MΩ min
- Withstanding voltage: 500V AC/minute
- Material: Contact made of phosphor bronze, tin-plated; Housing: glass-filled PA 66, UL94V-0
- Applicable PC board thickness: 0.6 to 1.2mm, 1.6mm
- Standards: Recognized E60389, certified LR20812
- RoHS compliant
Buy the JST 02ZR-3H-P – Reliable Connector for Industrial Applications
Secure your electronic builds with the JST 02ZR-3H-P shrouded connector header, featuring a 1.5mm pitch, reliable twin U-slots, and robust design for harsh environments. Perfect for surface mounting, this connector ensures a stable, distortion-resistant connection in industrial electronics, automation systems, and compact devices. Made with quality phosphor bronze and UL94V-0 housing, it guarantees safety and longevity. Easily order online and enhance your project's reliability with this high-quality component for precise, durable connectivity.
Order your JST 02ZR-3H-P series connector today and ensure dependable, secure connections for your electronic projects and industrial equipment.
Frequently Asked Questions
Where can I buy JST S6BZRSM2TFLFSN?
You can click on the BUY or RFQ button to purchase S6BZRSM2TFLFSN from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part S6BZRSM2TFLFSN?
You can download the S6BZRSM2TFLFSN datasheet or visit the JST website for support.
Who is the manufacturer of S6BZRSM2TFLFSN?
JST
