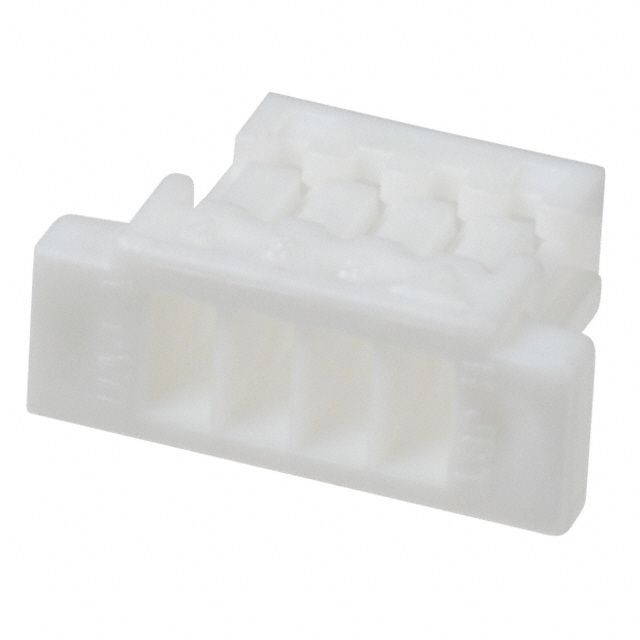

JST SHR04VSB Connector housing
This is a compact 4-position connector housing from the SH Series featuring a 1.0mm pitch, designed for reliable free-hanging connections. It has a crimp termination style and is constructed with phosphor bronze, tin-plated with reflow treatment, ensuring excellent electrical and mechanical performance. The connector supports conductor sizes from AWG #32 to #28, with a voltage rating of 50V AC/DC and a current rating of 1.0A. It complies with RoHS and includes protrusions for secure locking, making it ideal for space-constrained electronic applications.
JST SHR04VSB Connector housing Specifications:
- Current rating: 1.0A AC/DC
- Voltage rating: 50V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial/20mΩ max, post environmental testing/40mΩ max
- Insulation resistance: 100MΩ minimum
- Withstanding voltage: 500V AC/minute
- Applicable wire: AWG #32 to #28, insulation OD: 0.4 to 0.8mm
- Material: Phosphor bronze, tin-plated, reflow treatment
- Housing: PBT, UL94V-0, natural
- Connector type: Crimp style, free-hanging, compact design
- RoHS compliant
- Locking features: Protrusions for secure locking
Buy the Buy JST SH Series Connector Housing Part Number SHR04VSB Online
Enhance your electronic assembly with this JST SH Series connector housing featuring a 1.0mm pitch and 4-position design. Its crimp termination ensures a secure, durable connection ideal for space-constrained applications. Made from high-quality phosphor bronze and insulated with flame-retardant PBT, it offers excellent electrical performance with a voltage rating of 50V and a current capacity of 1.0A. Designed with locking protrusions for added security, this RoHS-compliant housing is perfect for reliable, long-lasting electronic connections in various industries.
Buy JST SH Series connector housing SHR04VSB now and experience reliable, space-saving connections with secure locking features.
Frequently Asked Questions
Where can I buy JST SHR04VSB?
You can click on the BUY or RFQ button to purchase SHR04VSB from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SHR04VSB?
You can download the SHR04VSB datasheet or visit the JST website for support.
Who is the manufacturer of SHR04VSB?
JST
