JST SM09BLBTAKSTDN2TKTBHF LBT Power Signal Connector
This LBT Type A series header connector features a robust design with multiple contact configurations, supporting high current and signal integrity in electronic assemblies. It includes two power contacts rated for 7.0 A and seven signal contacts rated for 0.5 A, all with tin-plated copper alloy contact points for durability and corrosion resistance. The connector is RoHS2 compliant, heat-resistant, and suitable for various wire sizes, ensuring reliable electrical connections in high-performance and space-saving applications. Its high-strength construction makes it an ideal choice for demanding electronic projects and industrial equipment.
JST SM09BLBTAKSTDN2TKTBHF LBT Power Signal Connector Specifications:
- Current rating: Power supply circuit 7.0 A AC/DC (AWG #20), Signal circuit 0.5 A AC/DC (AWG #28)
- Voltage rating: 50 V AC/DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/15 mΩ max (power), 20 mΩ max (signal); After tests/30 mΩ max (power), 40 mΩ max (signal)
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Power supply AWG #24 to #20, Signal AWG #28
- Material: Copper alloy, tin-plated (power); Phosphor bronze, tin-plated (signal)
- Housing: Heat resisting resin, UL94V-0
- RoHS2 compliant
- Dimensions: Based on product series, with specific measurements for each configuration
- Packaging: Embossed-taping for automated assembly

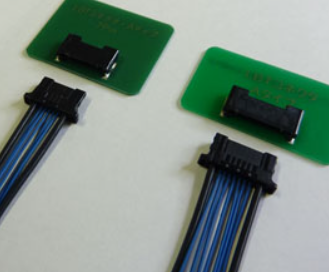

Buy the Buy JST LBT Connector A Type Part Number SM09BLBTAKSTDN2TKTBHF Online
Purchase your JST LBT Power Signal Connector today for space-efficient, high-current, and reliable electrical connections. Designed with durable tin-plated contacts, RoHS2 compliance, and a heat-resistant housing, this connector is ideal for demanding electronic and industrial applications. Its compact design and robust construction ensure optimal performance and safety in various environments. Whether for assembly or repair, buying online guarantees quick delivery and authentic quality, helping you enhance your project’s reliability and efficiency with ease. Order now for premium electronic connectivity solutions.
Order your JST Series LBT Connector A Type SM09BLBTAKSTDN2TKTBHF today and secure reliable power and signal connections for your electronic projects.
