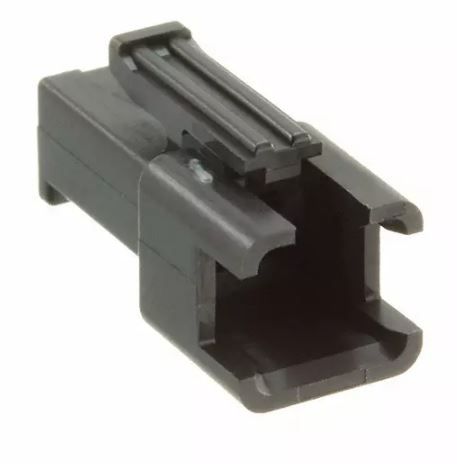

JST SMR03VB Wire Connector
This is a 3-position receptacle connector from the SM Series, designed for free-hanging installation. It supports wire sizes from 28 to 22 AWG, with a 2.5mm pitch. The connector is rated for 250V and features a crimp latch for secure connection. The black-colored housing ensures durability and easy identification.
JST SMR03VB Wire Connector Specifications:
- Current rating: 3A AC, DC max.
- Voltage rating: 250V AC, DC max.
- Temperature range: -25°C to +85°C.
- Contact resistance: Initial value/ 10m @ max. After environmental testing/ 20m Q max.
- Insulation resistance: 500M Q min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #28 to #22, 0.08 to 0.33mm
- Applicable panel thickness: 0.5 to 2.0mm
- Material: PA 6, UL94V-0
- RoHS compliant
- Connector type: Wire-to-wire, disconnectable crimp style
Buy the Buy JST SM Series Receptacle Connector Part Number SMR03VB Online
Purchase the JST SM Series wire connector SMR03VB online today for high-quality, reliable, and safe electrical connections. Perfect for small current, high-density electronic projects, featuring a 2.5mm pitch, support for 28-22 AWG wires, maximum 250V rating, and a sturdy black housing. This connector ensures secure, long-lasting connections in various applications, with RoHS compliance for environmentally friendly use. Easy to install with crimp latch, ideal for durable electronic assemblies with easy panel mounting options.
Get JST SM Series Receptacle Connector SMR03VB today—designed for reliable connections with durable housing, suitable for high-density applications.
Frequently Asked Questions
Where can I buy JST SMR03VB?
You can click on the BUY or RFQ button to purchase SMR03VB from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part SMR03VB?
You can download the SMR03VB datasheet or visit the JST website for support.
Who is the manufacturer of SMR03VB?
JST
