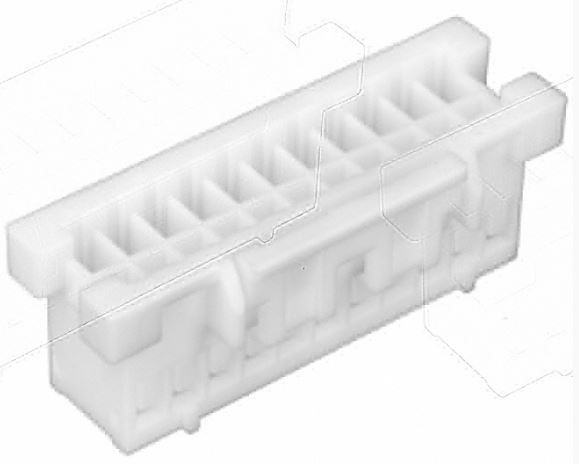

JST XADRP22V Connector housing
This durable and reliable connector housing from the XAD Series features a 22-position configuration with a 2.50mm pitch. Designed for free hanging mounting, it uses secure crimp-style contacts with a latch lock for stable connections. Made of natural-colored UL94V-0 material, it ensures high performance in various electronic applications. Suitable for assembling complex circuits, the housing provides easy installation and excellent contact retention. Ideal for industry-standard PCB connections, it offers dependable performance, RoHS compliance, and compatibility with a wide range of wires from AWG #28 to #20.
JST XADRP22V Connector housing Specifications:
- Current rating: 3A AC, DC (AWG #20)
- Voltage rating: 250V AC, DC
- Temperature range: -25°C to +85°C
- Contact resistance: Initial value/10m @ max.
- Insulation resistance: 1,000M Q min.
- Withstanding voltage: 1,000V AC/minute
- Applicable wire: AWG #28 to #20
- Applicable PC board thickness: 1.6mm
- Material: Phosphor bronze, tin-plated (reflow treatment)
- RoHS compliant
- Connector type: Free hanging housing
- Pitch: 2.50mm
- Number of positions: 22
- Locking mechanism: Latch lock
- Color: Natural
- Standards: RoHS, UL94V-0
- Applicable wire range: AWG #28 to #20
- Maximum current per contact: 3A
- Voltage withstand: 1,000V AC for 1 minute
Buy the Buy JST XAD Connector Part Number XADRP22V Online
Purchase the JST XAD Series22V connector housing online today for your electronic assembly needs. Featuring a 22-position design with 2.50mm pitch, it offers secure crimp-style contacts and a latch lock mechanism for dependable connections. Made of RoHS-compliant, UL94V-0 natural-colored material, this connector ensures high performance in PCB and industrial applications. Easy to install, with wide compatibility for wires from AWG #28 to #20, it guarantees reliable and safe operation in complex circuits, making it a smart choice for professionals and hobbyists alike.
Order your JST XAD Series22V connector today and ensure reliable, secure connections for your electronic projects with high-quality housings and crimp contacts.
Frequently Asked Questions
Where can I buy JST XADRP22V?
You can click on the BUY or RFQ button to purchase XADRP22V from an authorized JST distributor.
How do I troubleshoot issues or seek technical support for part XADRP22V?
You can download the XADRP22V datasheet or visit the JST website for support.
Who is the manufacturer of XADRP22V?
JST
