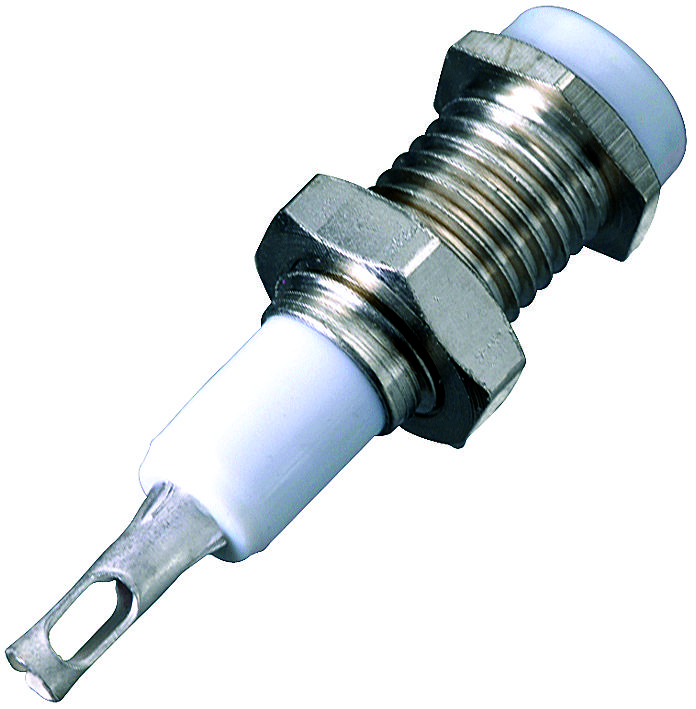

Johnson-Cinch Connectivity Solutions 1050251001 Test Measurement Jack
The white insulated metal-clad tip jack features a silver-plated phosphor bronze contact and a nylon 6/6 body, UL approved for self-extinguishing. It includes a nickel-plated brass threaded jacket and is designed for use with 0.08-inch standard tip plugs. The component supports panel thicknesses up to 0.281 inches and has a formed contact with a slotted terminal. Suitable for test and measurement applications, it provides reliable connectivity with a current rating of 10 amps and breakdown voltage of 5700 V. Ideal for precise electronic testing setups.
Johnson-Cinch Connectivity Solutions 1050251001 Test Measurement Jack Specifications:
- Contact Material: Phosphor bronze with silver plating
- Finish: Silver
- Body Material: Nylon 6/6 (UL approved, self-extinguishing)
- Threaded Jacket Material: Nickel-plated brass
- Panel Thickness Compatibility: Up to 0.281 inches
- Current Rating: 10 amps
- Breakdown Voltage: 5700 V minimum
- Contact Resistance: 0.010 ohms maximum
- Standard Tip Diameter: 0.080 inches (2.00 mm)
- Features: Formed contact with slotted terminal
- Support Applications: Test and measurement
Buy the Cinch Series Standard Tip Jack: 1050251001
Order the Cinch Test Measurement Jack today for reliable and precise electrical testing. Featuring a silver-plated phosphor bronze contact, nylon UL approved for self-extinguishing, and a nickel-plated brass threaded jacket, this component supports panel thicknesses up to 0.281 inches. Designed for use with 0.08-inch standard tip plugs, it offers a formed contact with a slotted terminal, ensuring secure connections. Perfect for test and measurement setups requiring high voltage breakdown and low contact resistance, providing durability and performance.
Get Cinch 1050251001 today—built for precise electronic testing and reliable performance in measurement applications.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1050251001?
You can click on the BUY or RFQ button to purchase 1050251001 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1050251001?
You can download the 1050251001 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1050251001?
Johnson-Cinch Connectivity Solutions
