Johnson-Cinch Connectivity Solutions 1420207016 RF Connector
This high-quality SMA 50 Ohm connector is designed for RF applications, including wireless communication, industrial systems, and 5G technology. It features a straight clamp-type plug with captivated contact for secure connections and low VSWR, ensuring minimal signal loss across 0-12.4 GHz frequency range. Constructed from brass with gold or nickel plating, this connector offers excellent durability and corrosion resistance. It meets MIL standards, with robust mechanical and environmental ratings, making it ideal for demanding environments. Easy to install, it provides reliable performance for professional RF setups and communication equipment.
Johnson-Cinch Connectivity Solutions 1420207016 RF Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: 0-12.4 GHz with flexible cable connectors
- VSWR: 1.15 + .01f (RG-58, LMR-195, LMR-240), 1.20 + .025f (RG-178)
- Working Voltage: up to 335 Vrms at sea level for RG-58, RG-142, LMR cables
- Dielectric Withstanding Voltage: up to 1000 VRMS depending on cable type
- Insertion Loss: 0.05 - 0.15 dB tested at 1-6 GHz depending on connector type
- Mechanical Ratings: Mating torque 7-10 in-lb, engagement force max 2 in-lb
- Environmental Ratings: -65°C to +165°C, MIL-STD-202 tested for shock, vibration, corrosion
- Material: Brass body with gold or nickel plating, PTFE insulators, silicone rubber seals
- Cable Compatibility: RG-58, RG-142, RG-178, RG-316, LMR series
- Connector Durability: 500 mating cycles min, high RF integrity

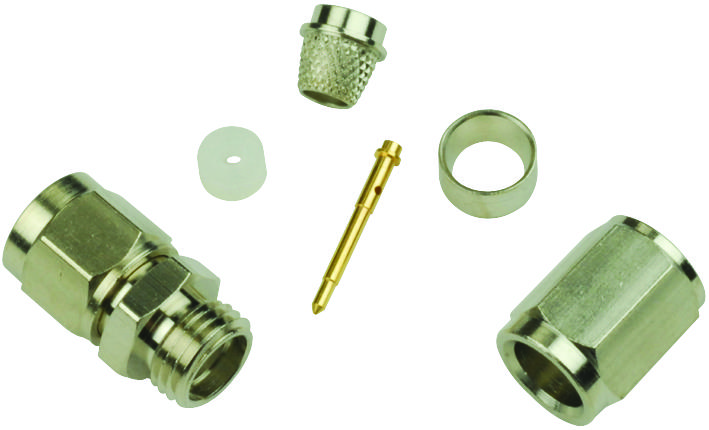

Buy the Cinch Series SMA 50 Ohm RF Connector: 1420207016
Enhance your RF communication setup with our Cinch SMA 50 Ohm connector, designed for high-frequency, low-loss connections across 0-12.4 GHz range. Its robust construction features corrosion-resistant brass with gold or nickel plating, ensuring durability and reliable signal transmission in demanding environments. The connector's easy installation involves straightforward mating and secure clamping, making it ideal for industrial, wireless, and 5G applications. Purchase online today and upgrade your RF system with truly professional-grade components built for longevity and superior performance.
Buy Cinch SMA 50 Ohm RF connector now and experience unmatched reliability and high-performance signal integrity for your RF systems.
Frequently Asked Questions
Where can I buy Johnson-Cinch Connectivity Solutions 1420207016?
You can click on the BUY or RFQ button to purchase 1420207016 from an authorized Johnson-Cinch Connectivity Solutions distributor.
How do I troubleshoot issues or seek technical support for part 1420207016?
You can download the 1420207016 datasheet or visit the Johnson-Cinch Connectivity Solutions website for support.
Who is the manufacturer of 1420207016?
Johnson-Cinch Connectivity Solutions
