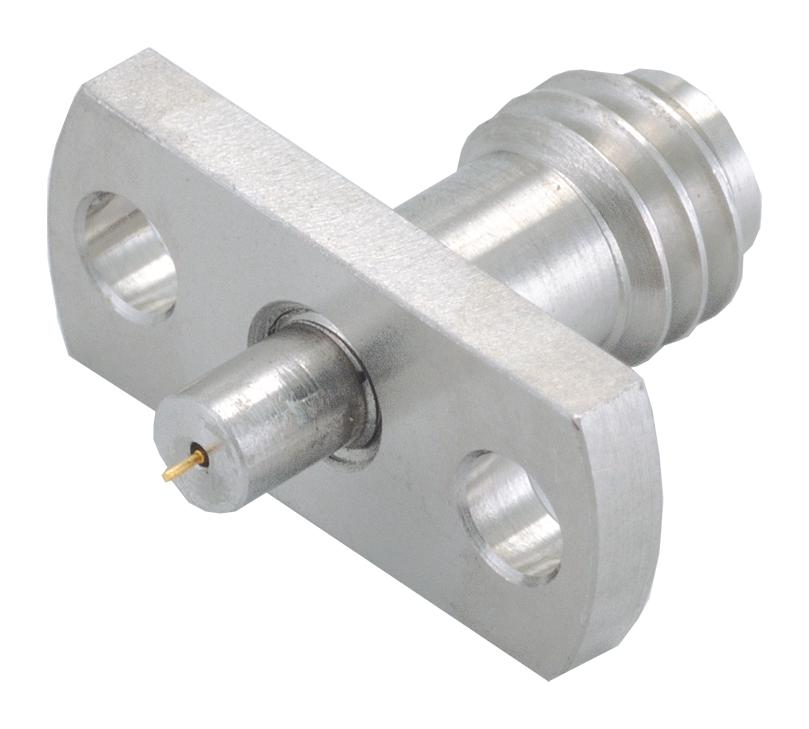

Johnson-Cinch Connectivity Solutions 1490701601 1.0mm RF Connectors
Johnson's 1.0mm RF connectors and adapters family offers high performance solutions for millimeter wave applications up to 110 GHz, ideal for 5G testing and research. These connectors include end launch, sparkplugs, and adapters, featuring rugged construction, durable design with a minimum of 500 cycles, low VSWR of 1.38 at 110 GHz, and excellent return and insertion loss characteristics. They are designed for easy installation with no soldering required and serve the demanding needs of R&D, semiconductor, and test measurement markets with consistent repeatability and high-quality standards.
Johnson-Cinch Connectivity Solutions 1490701601 1.0mm RF Connectors Specifications:
- Impedance: 50 ohms
- Bandwidth: DC to 110 GHz
- Durability: Minimum 500 cycles
- VSWR: Max 1.38 at 110 GHz
- Return Loss: Max 15 dB from DC to 67 GHz; Max 10 dB from 67 to 110 GHz
- Insertion Loss: Typical 0.7 dB
- Interface: 1.0 mm
- Connectors: End launch, sparkplug, panel mount, adapters
- Soldering: No soldering required
- Material: High-quality rugged construction
- Application: RF, microwave, 5G testing, R&D, semiconductor markets
Buy the Cinch Series 1.0mm RF Connectors: 149-0701-601
Discover high-performance 1.0 mm RF connectors and adapters from Cinch, designed for demanding millimeter wave applications up to 110 GHz. Featuring rugged durability, low VSWR, and easy screw-on installation, these connectors are ideal for 5G testing, R&D, and semiconductor markets. With a minimum of 500 mating cycles, these precision connectors deliver consistent performance, low insertion loss, and excellent return loss characteristics. Enhance your testing setup with reliable, easy-to-use RF components built for precision and longevity.
Buy Cinch Series 1.0mm RF connectors and adapters now and experience unmatched reliability and performance in millimeter wave testing applications.
