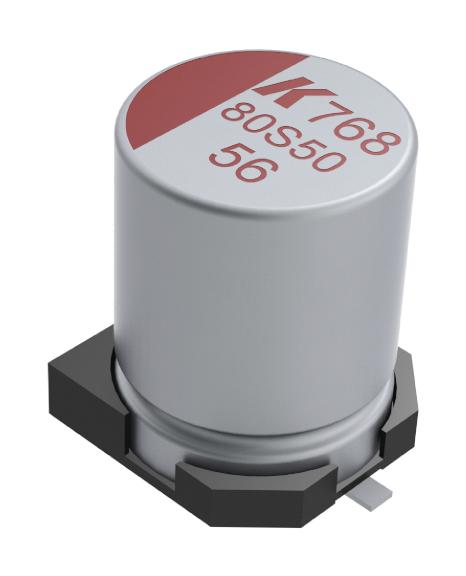

KEMET A768MS157M1HLAV024 Polymer Aluminum Capacitor
The KEMET A768MS157M1HLAV024 is a polymer aluminum electrolytic capacitor, ideal for applications requiring high capacitance and a wide operating temperature range. Its surface mount design simplifies integration into various electronic circuits. The capacitor exhibits low ESR and ESL, making it suitable for filtering, decoupling, and energy storage in automotive, consumer electronics, and industrial applications. It is AEC-Q200 qualified, ensuring reliability in demanding environments.
KEMET A768MS157M1HLAV024 Polymer Aluminum Capacitor Specifications:
- Series: A768
- Dielectric: Polymer Aluminum
- Style: SMD Can
- Description: Surface Mount Polymer Aluminum
- RoHS: Yes
- Lead: V-Chip
- Qualifications: AEC-Q200
- AEC-Q200: Yes
- Halogen Free: Yes
- Capacitance: 150 uF
- Capacitance Tolerance: 20%
- Voltage DC: 50 VDC, 57.5 VDC (Surge)
- Temperature Range: -55/+125°C
- Rated Temperature: 125°C
- Life: 2000 Hrs
- Resistance: 24 mOhms (100kHz 20C)
- Ripple Current: 2150 mAmps (100kHz 125C)
- Leakage Current: 1500 uA (2min 20°C)
- High Temperature Solder: No
- Packaging: T&R, 380mm
- Packaging Quantity: 400
- D: 10mm +/-0.5mm
- L: 12.4mm +/-0.5mm
- W: 10.3mm +/-0.2mm
- H: 10.8mm +/-0.2mm
- C: 11mm +/-0.2mm
- J: 4.4mm NOM
- K: 3.2mm NOM
- P: 4.6mm NOM
- R: 0.7 - 1.1mm
